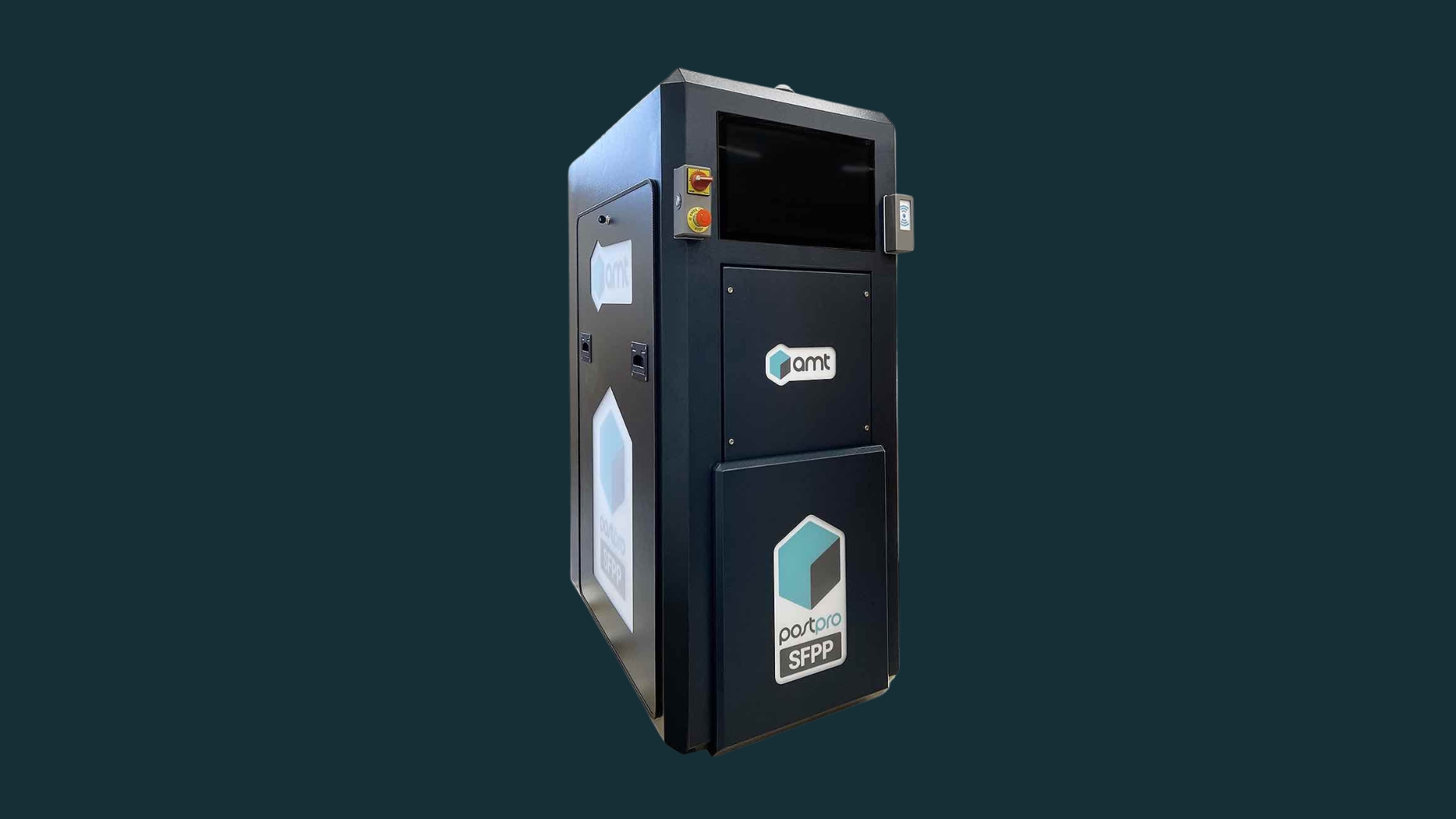

Compact 50-liter chemical vapor smoothing system for PP 3D printed parts
The PostPro SF50 PP is a closed-loop vapor smoothing system designed specifically for polypropylene (PP) 3D printed parts, providing zero-waste operation and enhanced surface treatment capabilities for this challenging material.
Johann Pfeifer
Account Manager
The PostPro SF50 PP is a cutting-edge chemical vapor smoothing device that was specifically built for post-processing polypropylene (PP) 3D printed products. This system, which includes a 50-liter processing chamber, is designed to improve the surface quality of polypropylene components manufactured using a variety of additive manufacturing technologies. The PostPro SF50 PP's revolutionary vapor smoothing technology enables non-line-of-sight processing, guaranteeing that complex geometries and internal cavities are uniformly smoothed while maintaining the mechanical integrity of the parts.
The PostPro SF50 PP is compatible with polypropylene from several vendors, including Ricoh, BASF, HP, and AM Polymers. This adaptability allows it to be used in a variety of applications while improving the mechanical qualities of processed parts, such as elongation at break and tensile strength. With its user-friendly interface and plug-and-play architecture, the PostPro SF50 PP is not only simple to use, but also allows for quick setup and maintenance, making it an excellent tool for organizations wishing to improve their polypropylene component post-processing capabilities.
Furthermore, the system's automation features enable easy interaction with external Manufacturing Execution Systems (MES) and Enterprise Resource Planning (ERP) systems, increasing workflow efficiency and allowing firms to obtain consistent outcomes across production batches.
Technical data:
Processing Chamber: 400 x 300 x 400 mm
Processing Chamber Volume: 48 liters
Compatible Technologies: MJF, SLS, HSS, SAF™, FFF, FGF, HSE, FDM
Compatible Materials: Mainly for Polypropylene (PP) but is also compatible with rigid plastics, elastomers and composite materials
Advantages
Patented Chemical Vapor Smoothing Technology
The PostPro SF50 PP uses AMT's unique chemical vapor smoothing technology, which improves the surface quality of 3D printed components. This proprietary technology uses a non-line-of-sight approach to successfully smooth complicated geometries and internal voids while maintaining the mechanical qualities of the parts. The technique increases the mechanical performance of polypropylene components by attaining injection molding-like finishes. This capacity makes it especially useful for applications in industries that require high-quality surface finishes, such as automotive and consumer products.
Advanced User Interface and Automation

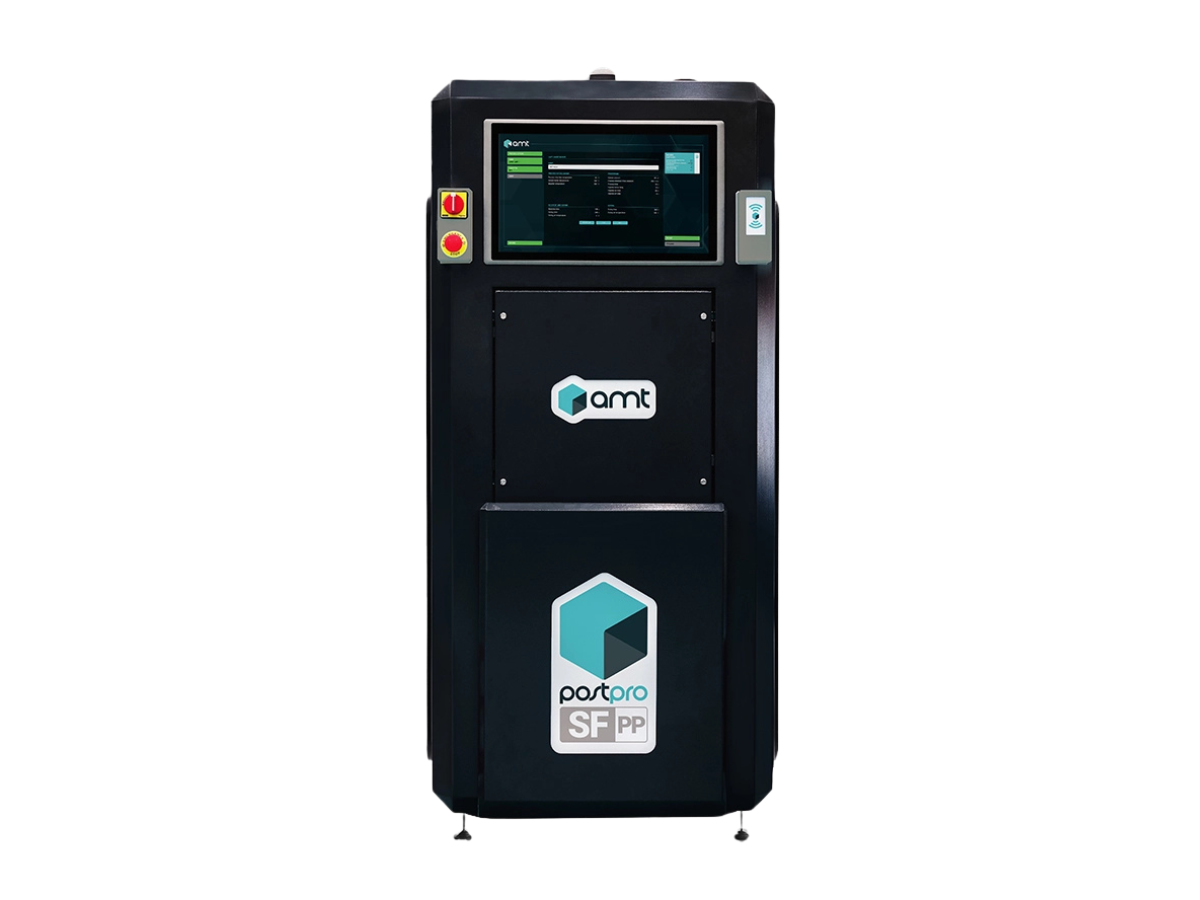

The PostPro SF50 PP, which features a 21.5-inch Full HD touch screen interface, offers an easy user experience that simplifies operation and monitoring. The interface enables operators to easily navigate through settings, monitor real-time processing statistics, and contact online support for troubleshooting and maintenance issues. Additionally, the system is Industry 4.0 compliant, allowing for easy connection with external Manufacturing Execution Systems (MES) and Enterprise Resource Planning (ERP) systems. This enhanced automation capacity optimizes processes while also increasing operational efficiency by decreasing manual involvement and maintaining consistent outcomes across production batches.
Ergonomic Design and Safety Features
The PostPro SF50 PP is ergonomically built, with a front-loading process chamber that allows operators to easily load and unload parts. This design reduces physical strain while increasing user comfort during operation. Furthermore, the system has critical safety features such as a front-mounted emergency stop (E-Stop) button and a safety circuit to assure safe operation in a variety of scenarios. These safety precautions are critical for keeping operators safe when handling potentially dangerous ingredients during the vapor smoothing process.
Comprehensive Consumable Management

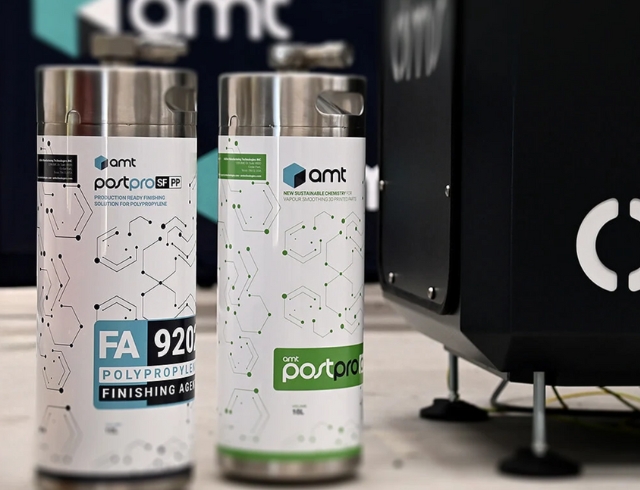

To improve the post-processing experience, the PostPro SF50 PP has RFID canister recognition technology, which provides reliable connections between the system and consumables. This feature simplifies the consumable replacement procedure while also improving safety by eliminating erroneous installs, which could lead to operational failure. The system is compatible with a variety of AMT finishing agents, letting customers choose the consumables best suited to their individual processing requirements. This flexibility increases the PostPro SF50 PP's capability in handling various polypropylene materials.
Eco-Friendly Closed-Loop System
The PostPro SF50 PP is a fully closed-loop vapor smoothing device that focuses both on environmental sustainability and operator safety. It produces no waste during operation and has complete consumable recycling capabilities, utilizing AMT's sustainable PostPro Pure consumable. This environmentally responsible strategy not only ensures adherence to severe environmental requirements, but it also matches with modern manufacturing sustainability objectives. The PostPro SF50 PP is a crucial tool for firms wishing to sustainably improve their post-processing capabilities since it reduces environmental impact while delivering high-quality surface finishes.

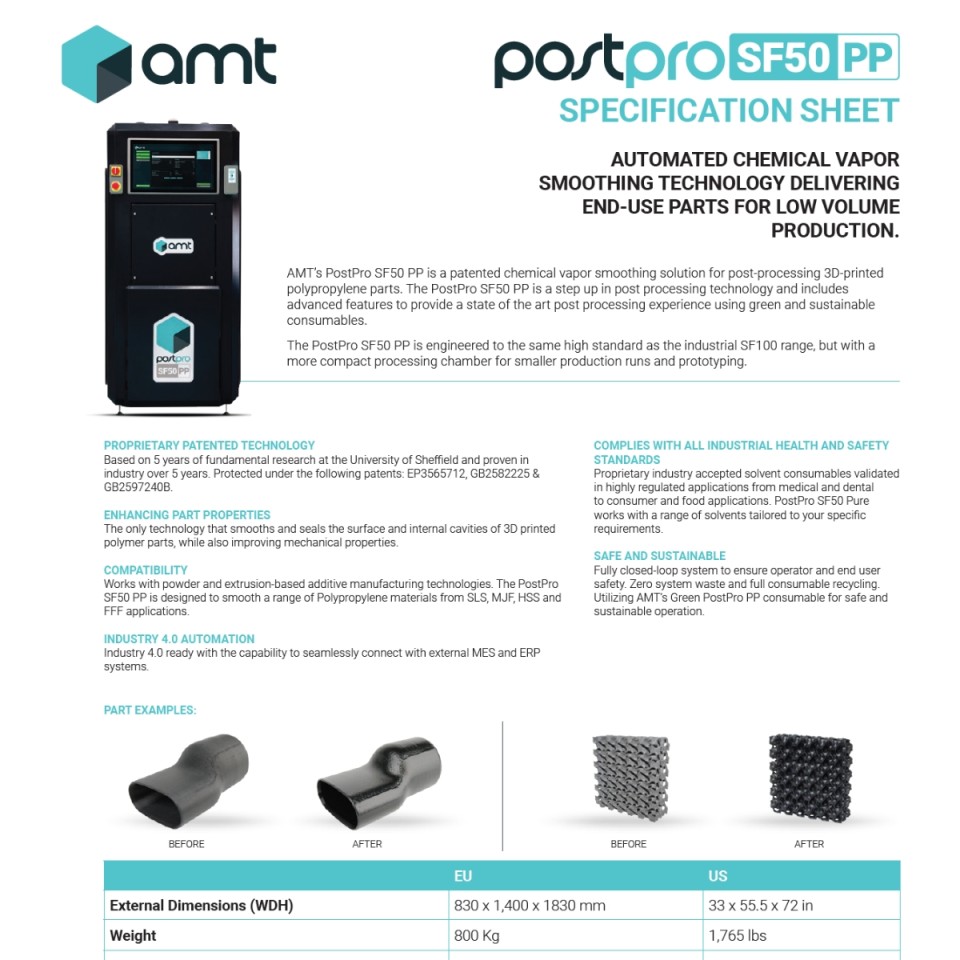

Data Sheet AMT PostPro SF50 PP
Get the PDF
