3D printers
High quality 3D printers
Large parts with excellent surface quality and detail.

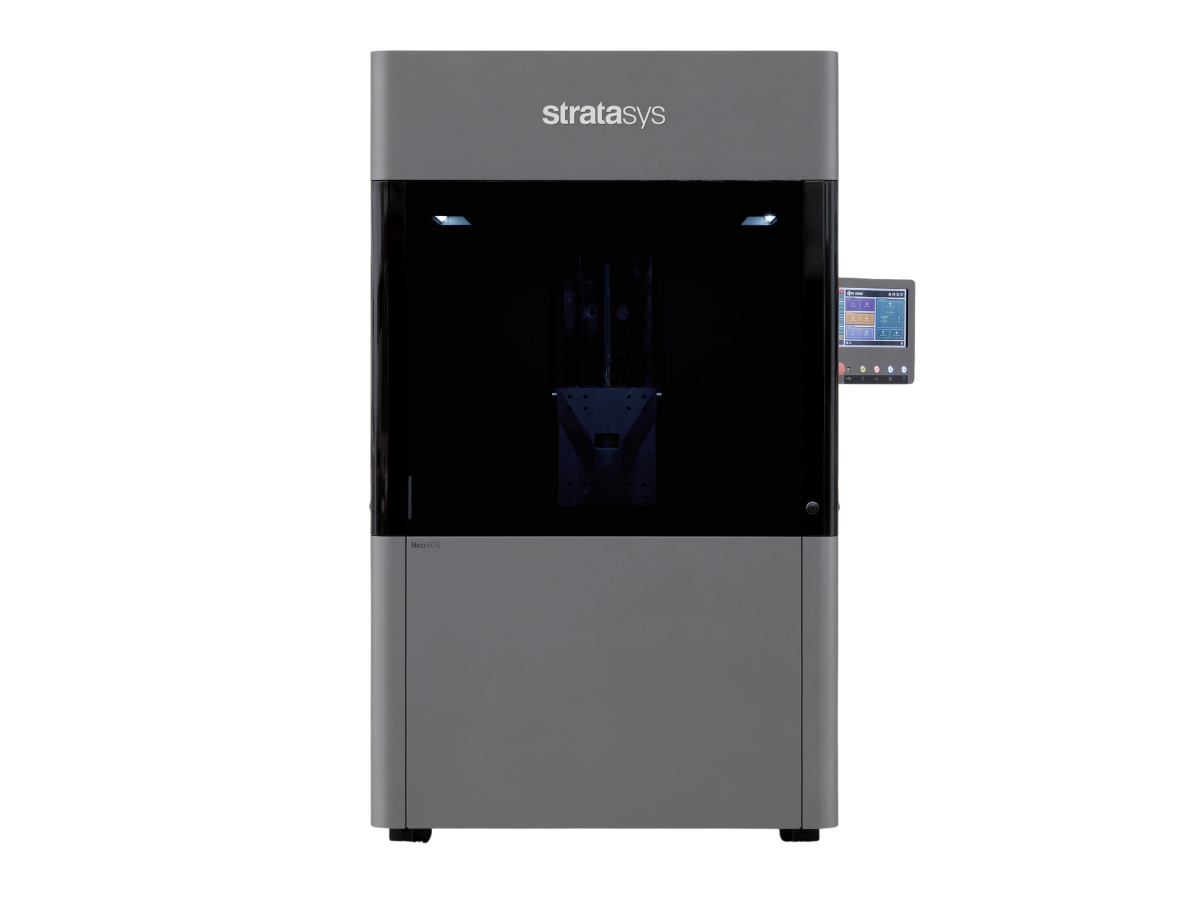

The Stratasys® Neo®800 is ideal for prototyping, tooling, and master models.
Ahmet Destan
Head of the Metal Business Unit
Large format SLA printer that produces large components with excellent surface finish, accuracy and detail. The SLA printer produces parts with excellent surface finish on the 800 × 800 × 600 mm build platform. Produce large parts without the need to cut up the file, or build multiple parts in one print to save time and cost.
Specifications:
Laser: 2 watts; 355 Nm, solid state.
Beam focus: Dynamic & variable
Beam size: 150 to 600 μm
Layer thickness: 50 to 200 μm
Build volume: 800 × 800 × 600 mm
Advantages
Largest Neo Series Platform
The Stratasys® Neo®800 prints many parts in one pass to save time and money or large parts without the need for splitting. The build platform of the Stratasys® Neo®800 measures 800 x 800 x 600 mm.
Powerful laser
The Stratasys® Neo®800 produces parts with unsurpassed quality and high accuracy. The Stratasys® Neo®800 features a 2-watt laser with a beam size of 150 to 600 µm and a dynamic and variable focus.
Excellent quality of sidewall parts
The scanning system of the Stratasys® Neo®800 provides remarkable layer-to-layer repeatability by using state-of-the-art laser and scanner technology. The printed parts have excellent surface quality and high resolution.
Faster build times
Print speed is improved by carefully developed and efficient software. The Neo® series is equipped with dynamic laser dot control as standard, with a variable option available for even faster build times.

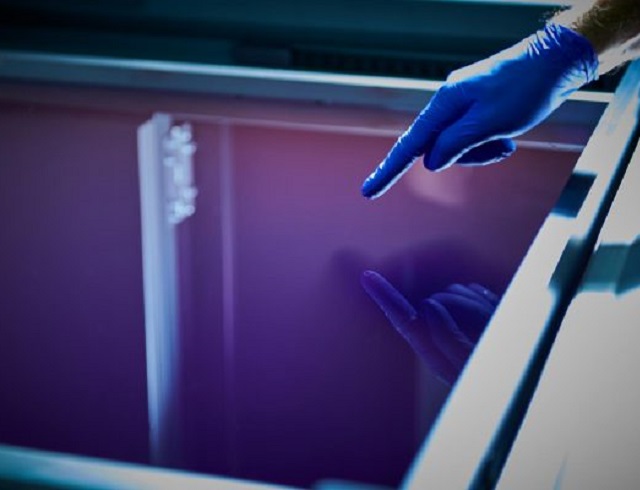

Open material system
The high-power laser of the Stratasys® Neo®800 processes all 355 Nm SLA resins currently on the market with optimum productivity. An open material system means that users of the system are not bound by the usual parameters and manufacturer materials.
Proven reliability and quality assurance
Stratasys® Neo®800 is carefully engineered, developed with state-of-the-art technology, and equipped with proven components and aesthetic finishes.

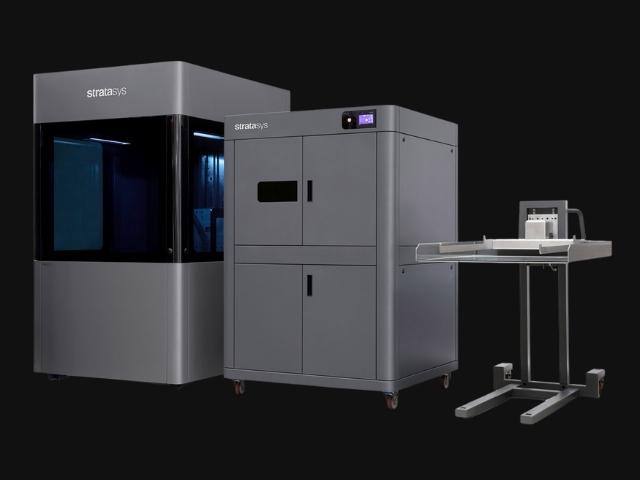

Complete total solution
Conveniently remove the Stratasys® Neo®800 platform with components weighing up to 40 kg from the SLA system using the Stratasys Neo Unload Trolley and unload them for the washdown process. The parts can then enter the UV800 post-cure chamber to optimize and improve the strength and performance of each part.
Connected services
Use the built-in camera, emailed progress reports and status updates to stay informed. Customer recommendations are the basis for Neo® Series software updates.
Process
1. Prepare
Prepare for printing with intuitive Titanium software, which optimizes print quality and captures print data for better traceability to increase work efficiency.
2. Print
Dynamic laser focusing and SD and HD build modes enable the production of highly accurate and detailed parts with intricate, small and large designs.
3. Washing
Washing print models ensures that uncured resin is removed from the surface of the components. The washing process takes only a few minutes.
4. Hardening
Printed parts must undergo a final curing process. Stratasys® UV800 is designed to meet this requirement with high-intensity UV lamps and a rotary table.
Would you like to know if this solution meets your requirements?
Call or email us and we will be happy to help you.
Ahmet Destan
Head of the Metal Business Unit
Applications
Large scale prototyping
High-volume, high-throughput printing is used in demanding areas such as service bureaus or internal centralized manufacturing departments.
Prototype large parts
Print extensive idea and communication models to assess the accuracy of functional fit and form.
Rapid production of molds
Creating production jigs and molds for small batch injection molds.

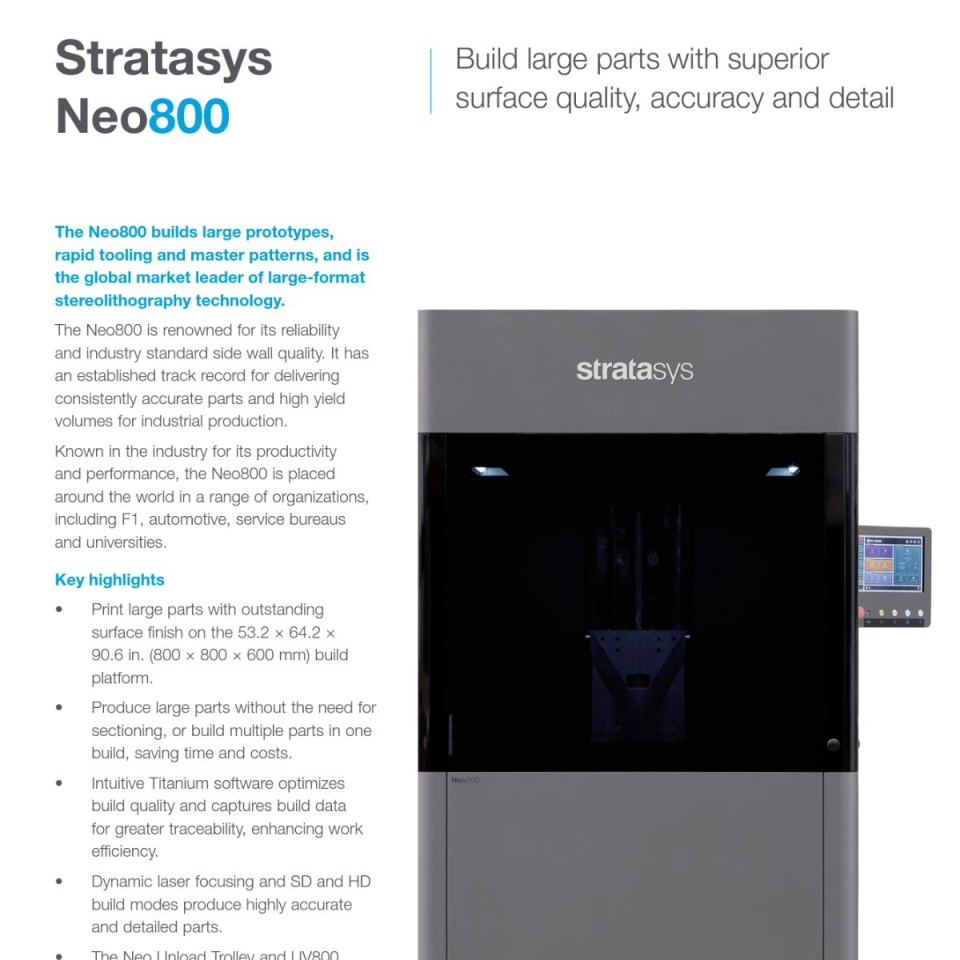

Data sheet Stratasys® Neo®800
Get the PDF
