INFINAM® RG 2000 L (Transluscent ABS)
INFINAM® RG photopolymers have been specially developed for 3D printing of rigid industrial parts using photo-curing technologies.
Marc-Oliver Heißler
Account Manager

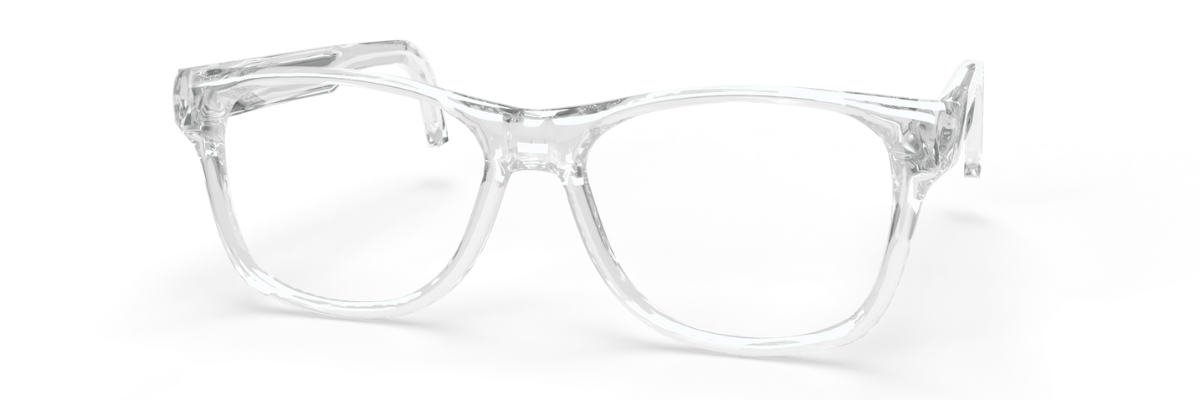

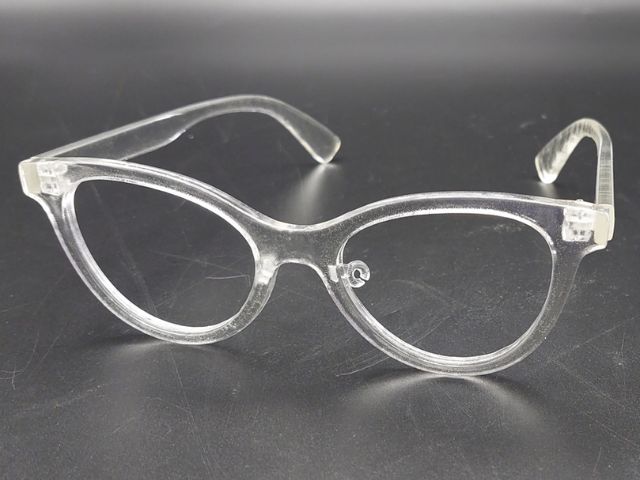

INFINAM® RG 2000 L is a photo-resin suited for a number of industries but shines most in the demanding eyewear industry. The clear liquid formulation cures quickly and is easy to process. The ready-to-use material combines excellent impact resistance with high temperature resistance while exhibiting long-lasting thermomechanical performance.
Technical Information:
Tensile Strength (MPa) = 53
Elongation at break (%) = 48
Izod Notched Impact = 44
Heat deflection Temperature = 78
Flexural Strength (MPa) = 0.3
Applications
The low yellowing index - even after prolonged UV irradiation - also makes INFINAM® RG 2000 L suitable for applications such as microfluidic reactors or transparent high-end prototypes for observing the inner workings of complex assemblies. The excellent light transmission also enables other applications such as lenses, light guides and illumination covers.
Technical Information
INFINAM® RG 2000 L
Highly transparent & impact resistant photopolymer

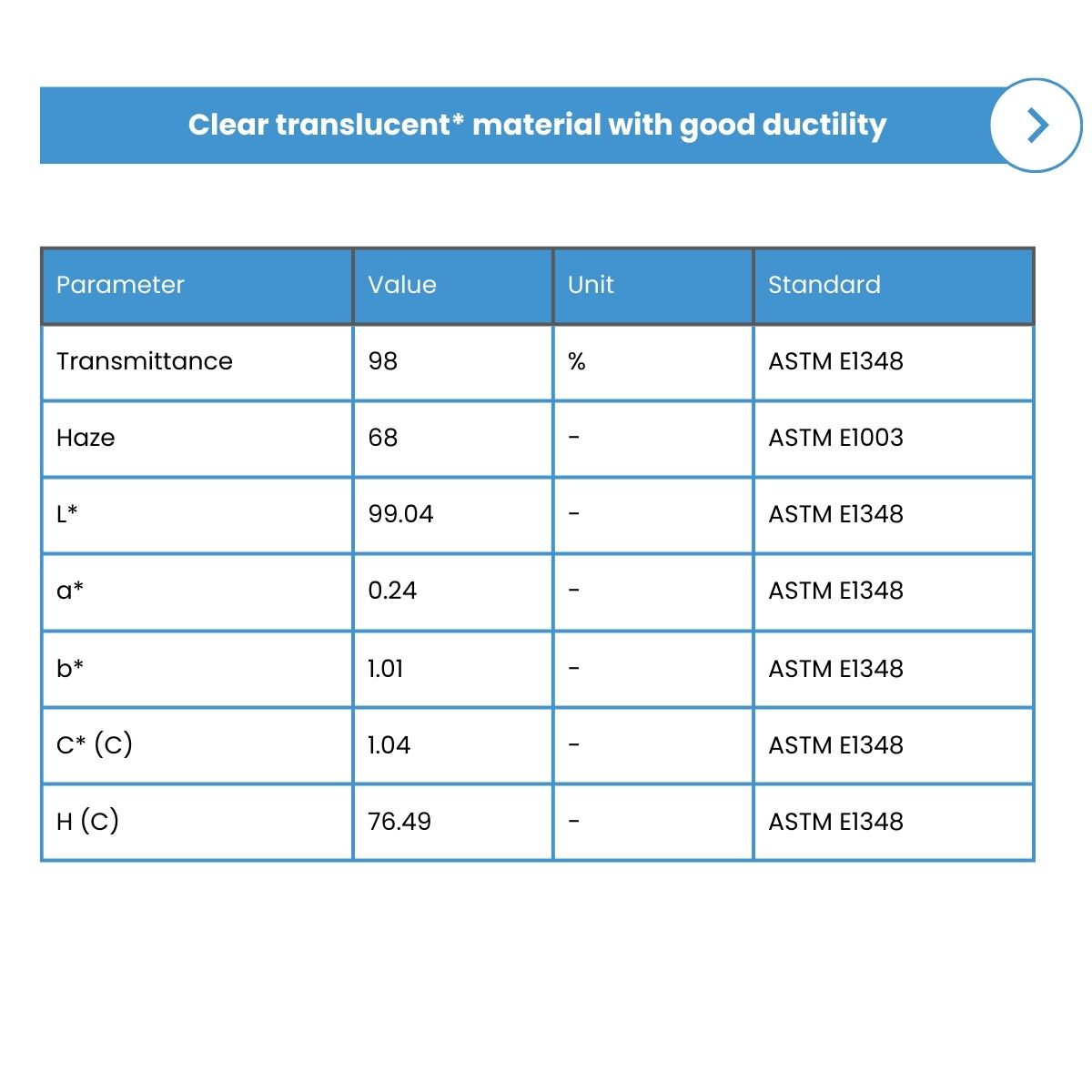

High Optical Clarity
- Greater than 98% optical trasmittance
- Low yellowness value

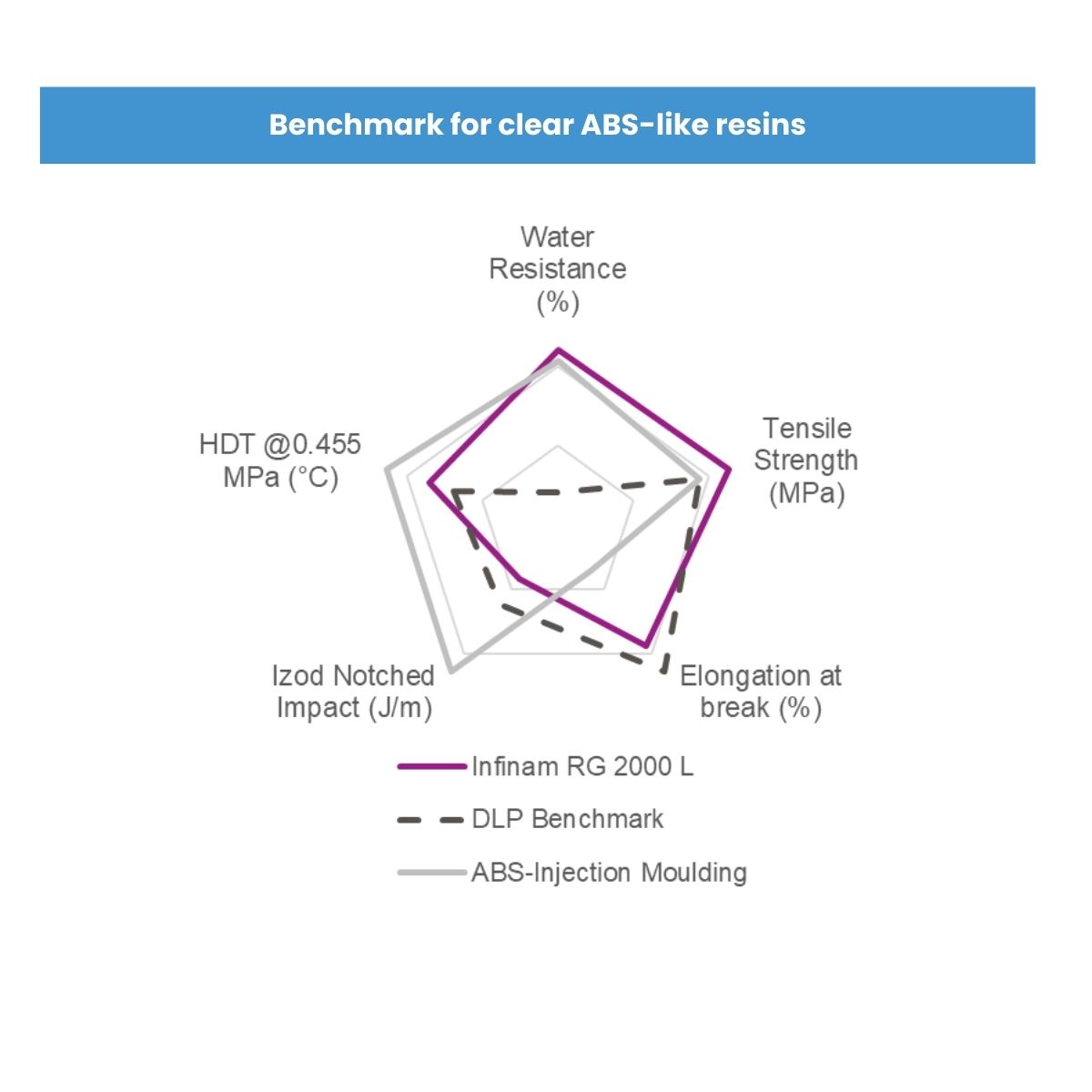

High HDT & Impact Strength
- Unseen combination of HDT 78°C & Izod Notcherd Impact of 44 J/m
Minimale Wasserabsorption
- Very low water absorption
- Resistant against saline solutions
Workflow INFINAM® RG 2000 L
01
PRINTING
Tested on a variety of DLP printers
02
CLEANING
Isopropanol (IPA)
03
POST-CURING
1.) 120 min @ 80 °C with UV-light 2.) 180 min @ 80 °C thermal oven
Resources

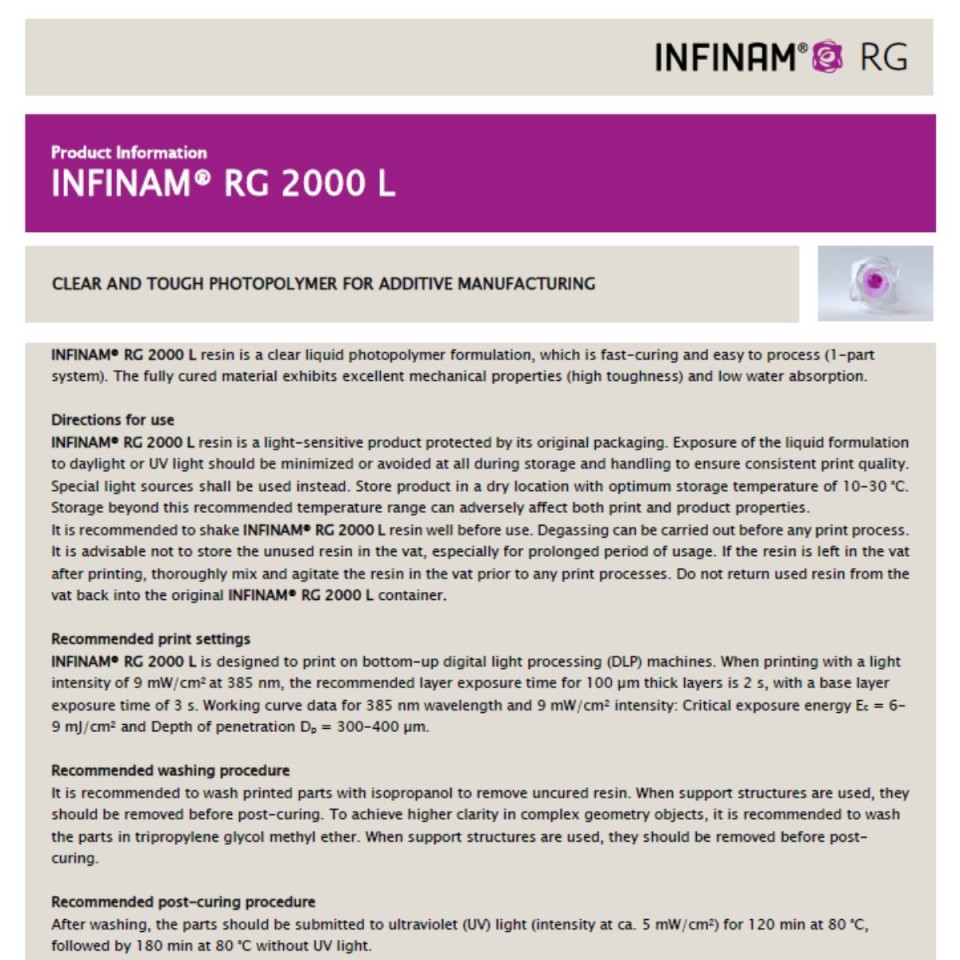

Material Data Sheet INFINAM® RG 2000 L
Get the PDF
