3D printers
High quality 3D printers
Build small to medium-sized parts with perfect surfaces.

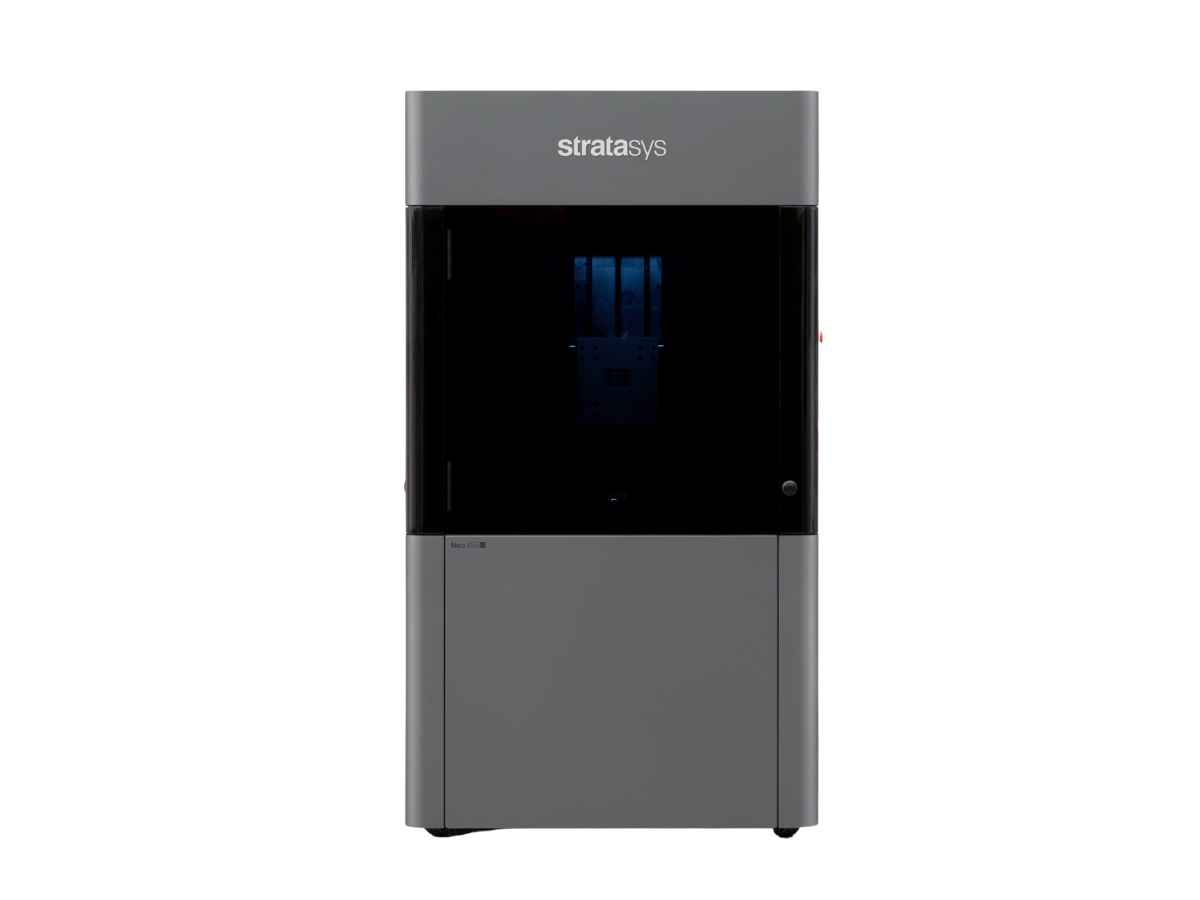

Reliable, productive, and efficient, the Stratasys Neo450e is designed and engineered for industrial manufacturing.
Ahmet Destan
Head of the Metal Business Unit
An affordable industrial SLA printer that can produce small to medium-sized parts with consistent accuracy and repeatability. Produce complex prototypes, tooling, or master models with industrial quality. Stratasys Neo 450e is reliable and designed for non-stop printing of industrial production parts. Intuitive Titanium software helps you capture manufacturing history, parameter details, and part traceability data for further insight and reporting.
Key Points:
Laser: 1 watt; 355 Nm, solid state
Beam focus: Dynamic
Beam size: 250 μm
Layer resolution: 50 to 200 μm
Build volume: 17.72 × 17.72 × 15.75 in. (450 × 450 × 400 mm)
Advantages
The Stratasys Neo450e mid-size platform
The compact Stratasys Neo450e, features a 450 x 450 x 400 mm build platform and produces master models, rapid tooling, and prototypes with remarkable surface quality and detail.
Simple but powerful 1-watt laser
Neo450e is an affordable industrial SLA printer that produces small to medium-sized parts with consistent accuracy and repeatability. It is equipped with a 1-watt laser that has a beam size of 250 µm and features dynamic focus.
Excellent surface quality
The beam delivery system of the Stratasys Neo450e, provides remarkable layer-to-layer quality repeatability by using the latest laser and scanner technology. Printed parts have excellent sidewalls and high resolution.

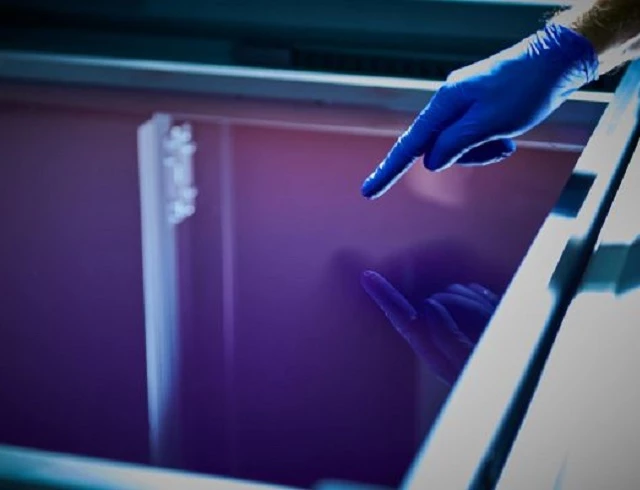

Open resin system
The high-powered laser of the Stratasys Neo450e processes all 355 Nm SLA resins currently available on the market with optimal productivity. An open material system means that users are not bound by the usual parameters and manufacturer materials.
Proven reliability and quality
The Stratasys Neo450e is carefully engineered, designed with state-of-the-art technology, and equipped with proven components and aesthetic finishes.
Networked services
Use the built-in camera, emailed progress reports, and status updates to stay informed. Customer recommendations and suggestions are the basis for Neo Series software updates.
Process
1. Prepare
Prepare for printing with intuitive Titanium software, which optimizes print quality and captures print data for better traceability to increase work efficiency.
2. Print
Dynamic laser focusing and SD and HD build modes enable the production of highly accurate and detailed parts with intricate, small and large designs.
3. Washing
Washing print models ensures that uncured resin is removed from the surface of the components. The washing process takes only a few minutes.
4. Hardening
Printed parts must undergo a final curing process. Stratasys®Neo®450e is designed to meet this requirement with high-intensity UV lamps and a rotary table.
Applications

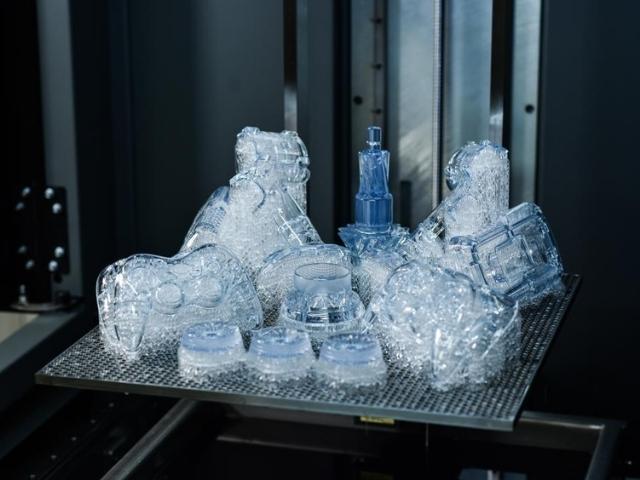

Large scale prototyping
High-volume, high-throughput printing is used in demanding areas such as service bureaus or internal centralized manufacturing departments.

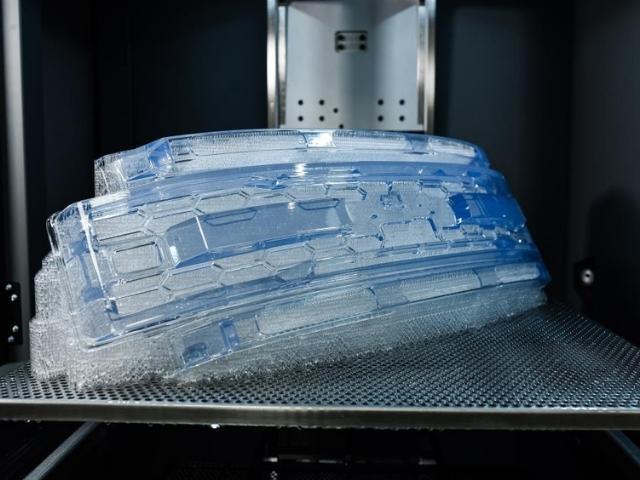

Prototype large parts
Print extensive idea and communication models to assess the accuracy of functional fit and form.

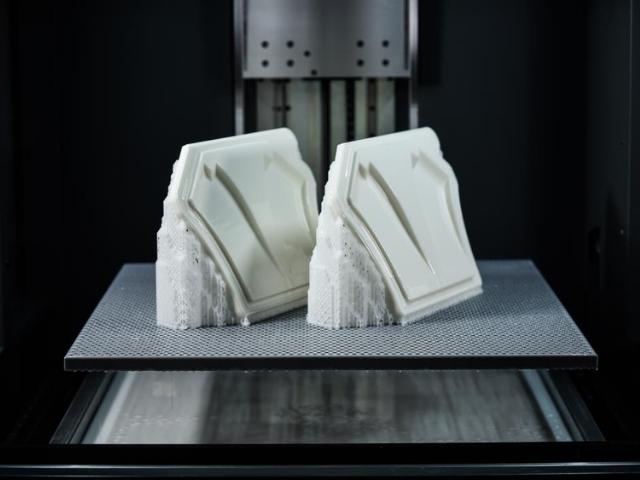

Rapid production of molds
Creating production jigs and molds for small batch injection molds.

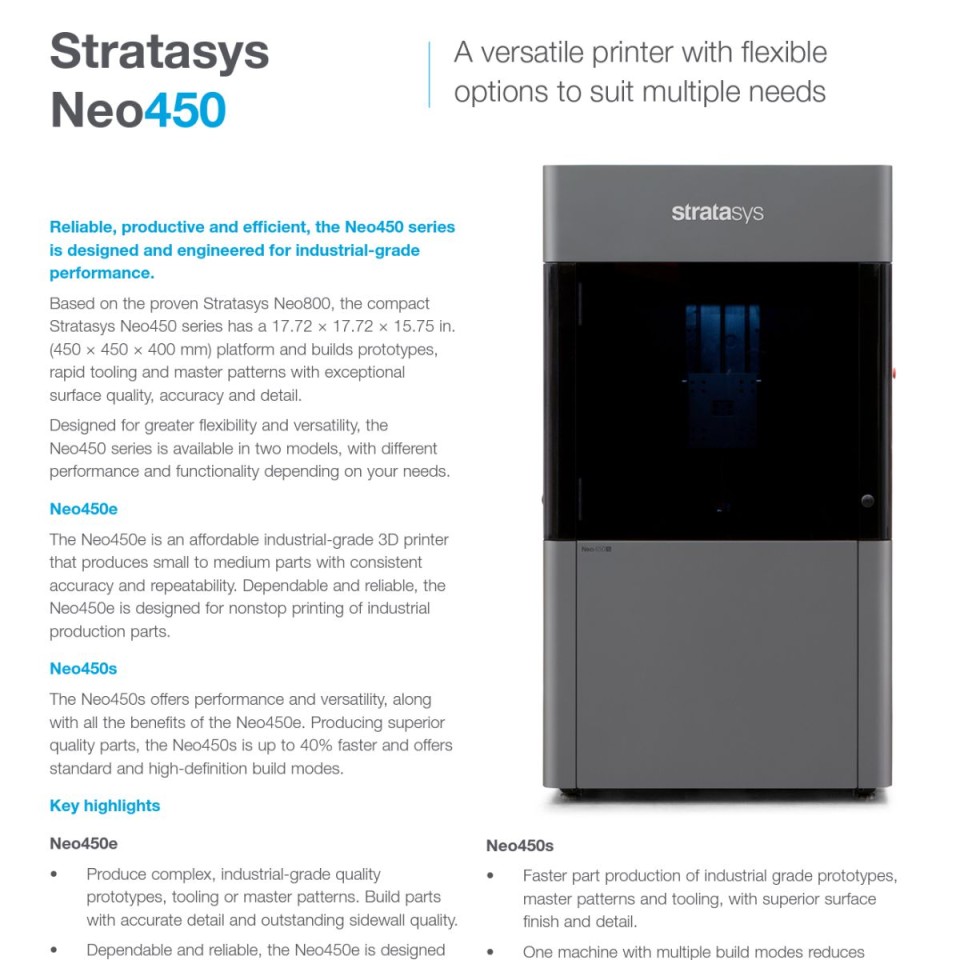

Data sheet Stratasys Neo®450e
Get the PDF
