INFINAM® RG 7100 L (ABS-like 2.0)
INFINAM® RG photopolymers have been specially developed for 3D printing of rigid industrial parts using photo-curing technologies.
Marc-Oliver Heißler
Account Manager

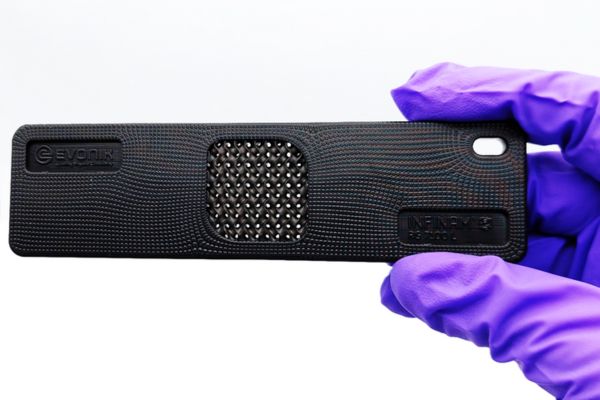

INFINAM® RG 7100 L was specially developed for DLP printers and enables the production of parts with isotropic properties and low moisture absorption. The mechanical properties are comparable to those of an ABS material and the black colored formulation can also be used on high throughput printer systems. Printed parts have fine features and smooth and glossy surfaces, making the new photopolymer ideal for sophisticated design visualizations.

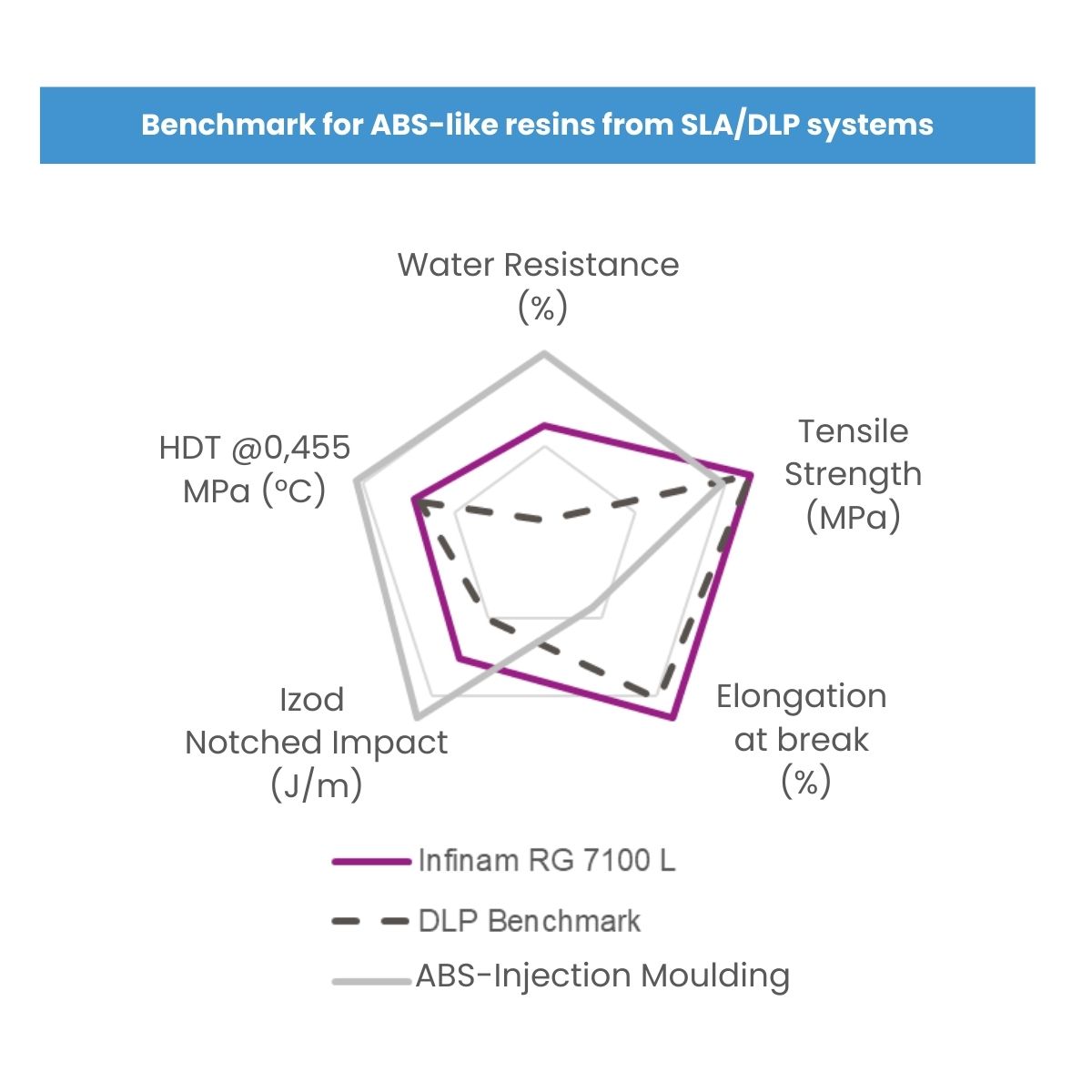

Technical Information:
Tensile Strength (MPa) = 51
Elongation at break (%) = 48
Izod Notched Impact = 80
Heat deflection Temperature = 66
Water Resistance (%) = 1.1
Applications

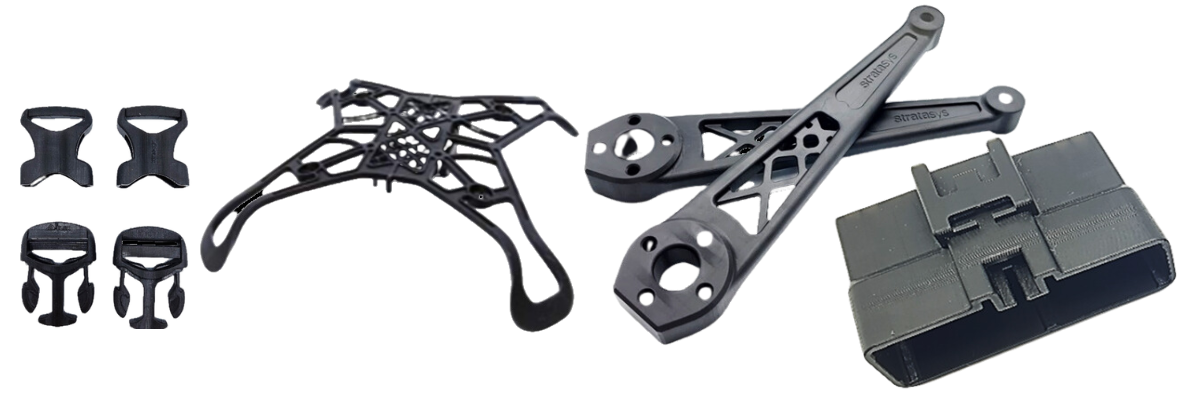

INFINAM® RG 7100 L can also be used for applications such as drones, buckles or automotive parts that require high ductility combined with high impact strength. The printed parts can be machined and remain fracture resistant even when exposed to high forces.
Technical Information
INFINAM® RG 7100 L
Highly impact & temperature resistant
Excellent Thermomechanical Properties
- Great impact, fatigue & temperature resistance
- High machinability

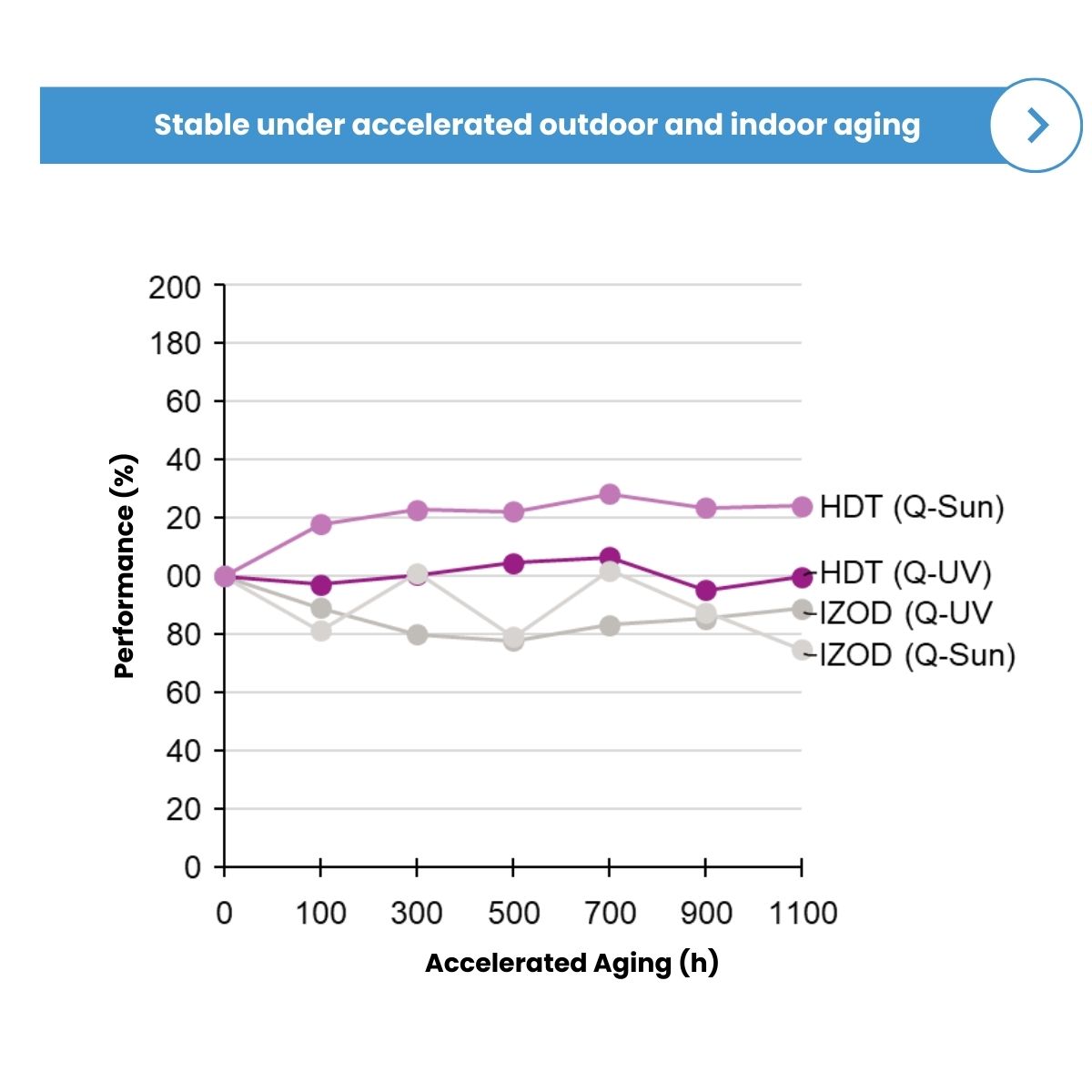

Excellent weatherability
- Retains > 85 % of impact strength after 1100 hours of accelerated outdoor weathering
Biocompatible & low water absorption
- Complys with ISO 10993-5
- Water absorption of 1.1 %
Workflow INFINAM® RG 7100 L
01
PRINTING
a.) Tested on a variety of DLP printers
02
CLEANING
Isopropanol (IPA)
03
POST-CURING
1.) 120 min @ 80 °C with UV-light 2.) 180 min @ 80 °C thermal oven
Resources

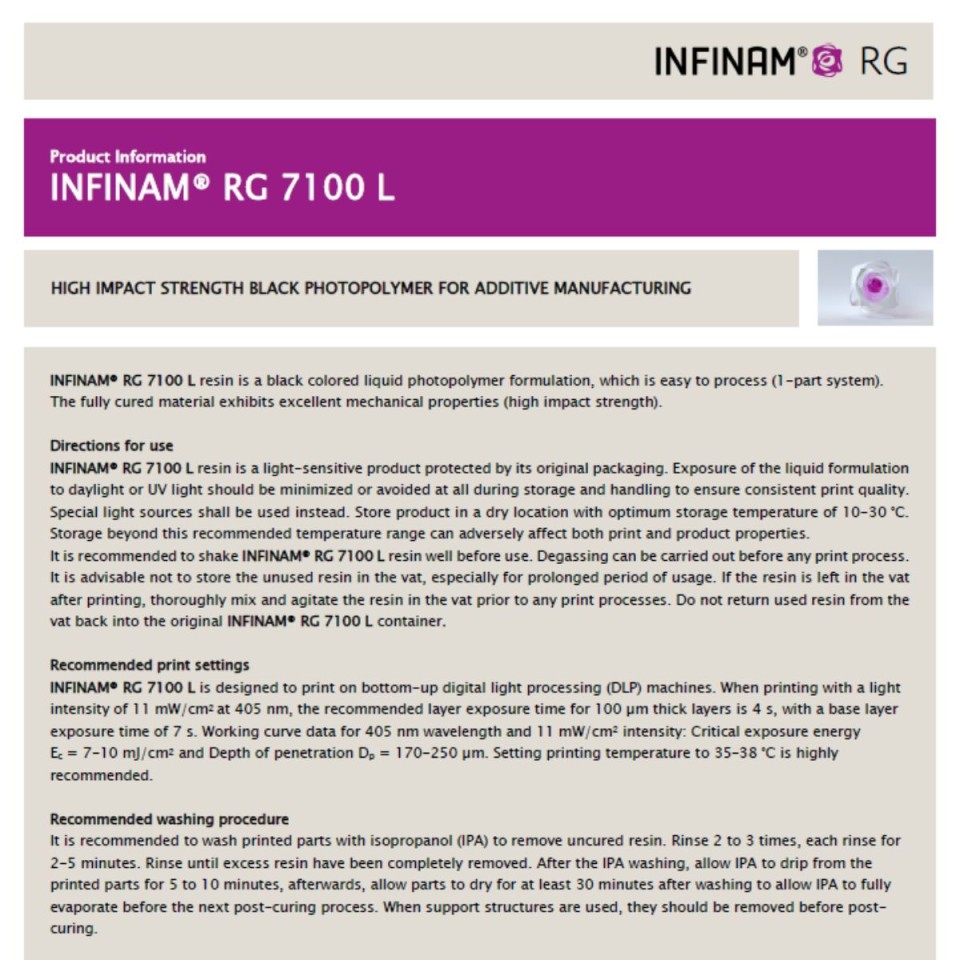

Material Data Sheet INFINAM® RG 7100 L
Get the PDF
Do you want to know if this material meets your needs?
Call us or send us an email and we will be happy to help you.
Marc-Oliver Heißler
Account Manager
