INFINAM® RG 3101 L (ABS-like)
INFINAM® RG photopolymers have been specially developed for 3D printing of rigid industrial parts using photo-curing technologies.
Marc-Oliver Heißler
Account Manager
INFINAM® RG 3101 L is designed for printing on bottom-up Digital Light Processing (DLP) machines. INFINAM® RG 3101 L is a black, low-viscosity photopolymer that cures quickly and is very easy to process.
The ready-to-use material combines excellent impact strength with high temperature resistance and exhibits long-lasting thermomechanical performance.
INFINAM® RG 3101 L can be subjected to strong forces due to its high fracture resistance. It can replace some of the engineering plastics produced by conventional processes.
Applications

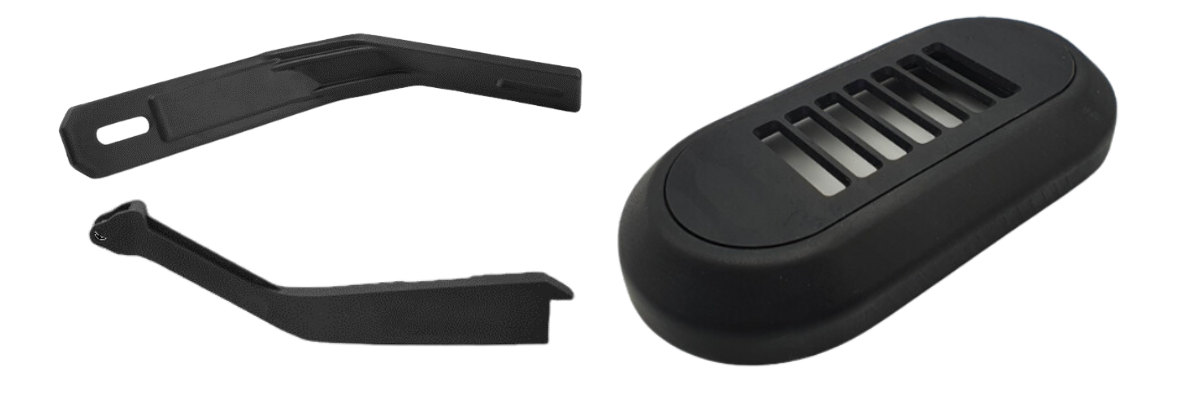

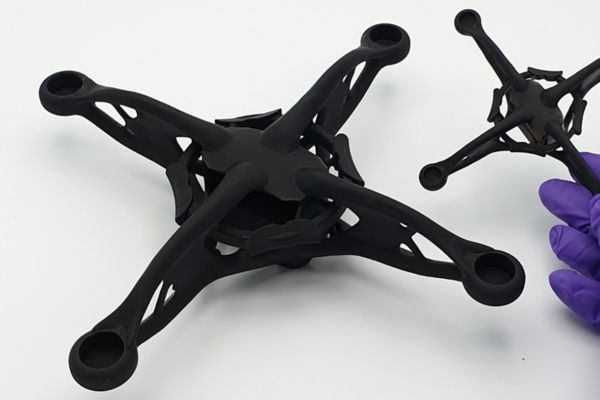

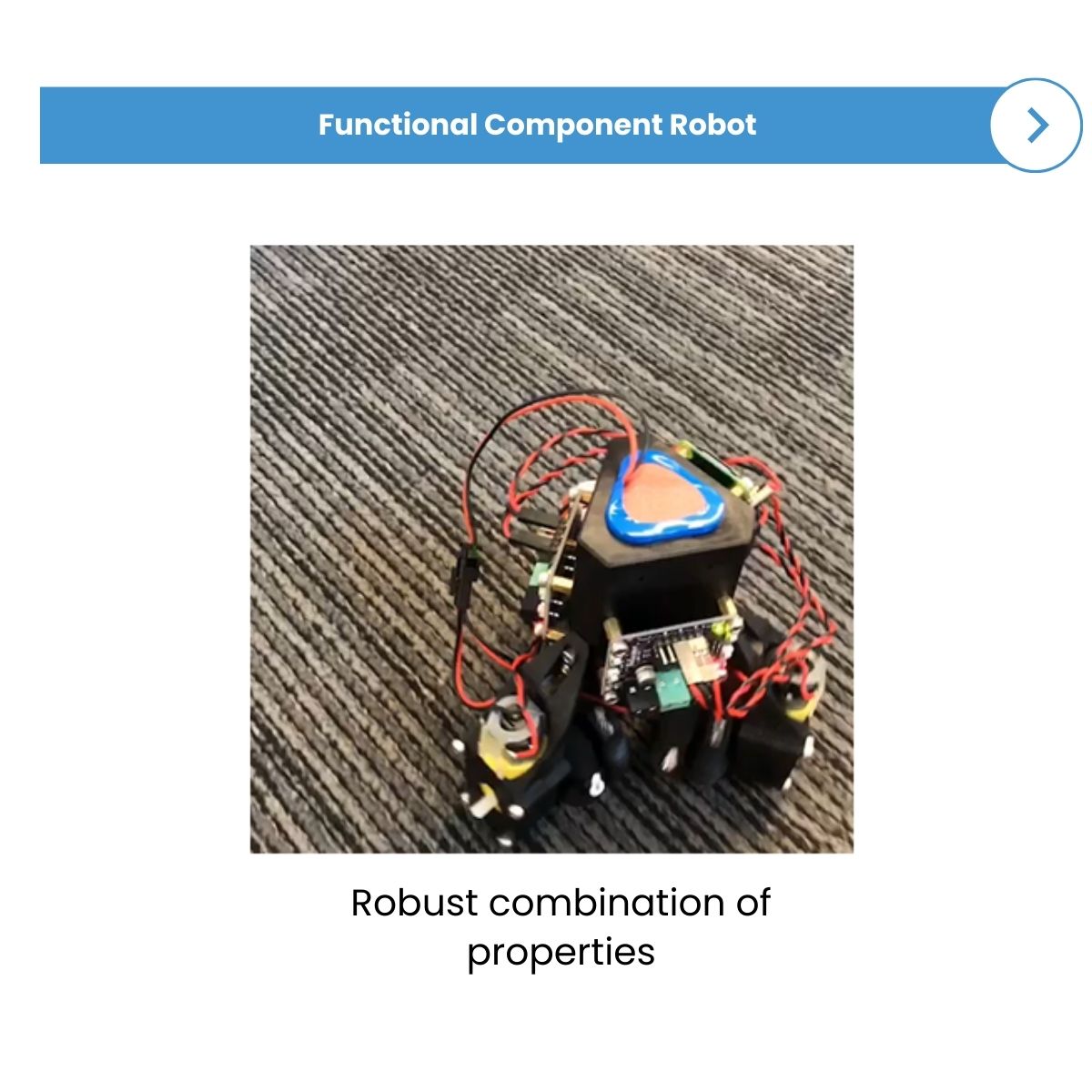

3D components printed from INFINAM® RG 3101 L, such as drones, buckles or automotive parts, can be processed by machine and remain fracture-resistant even when subjected to strong forces.
Technical Information
INFINAM® RG 3101 L
Highly impact & temperature resistant
Excellent mechanical properties
- Well balanced tensile properties
- Non-brittle and machinable

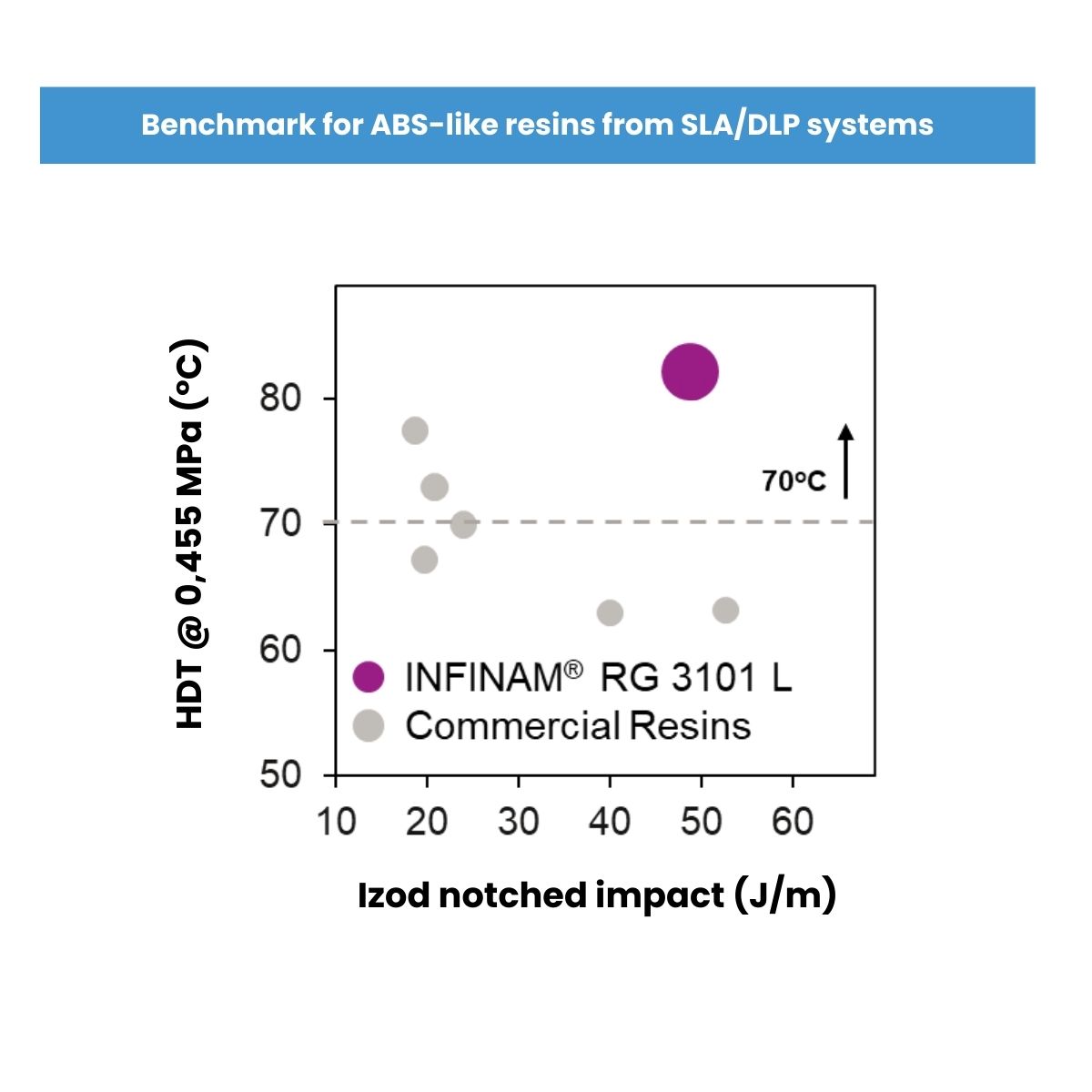

Superior impact resistance
- Objects don't break easily upon impact

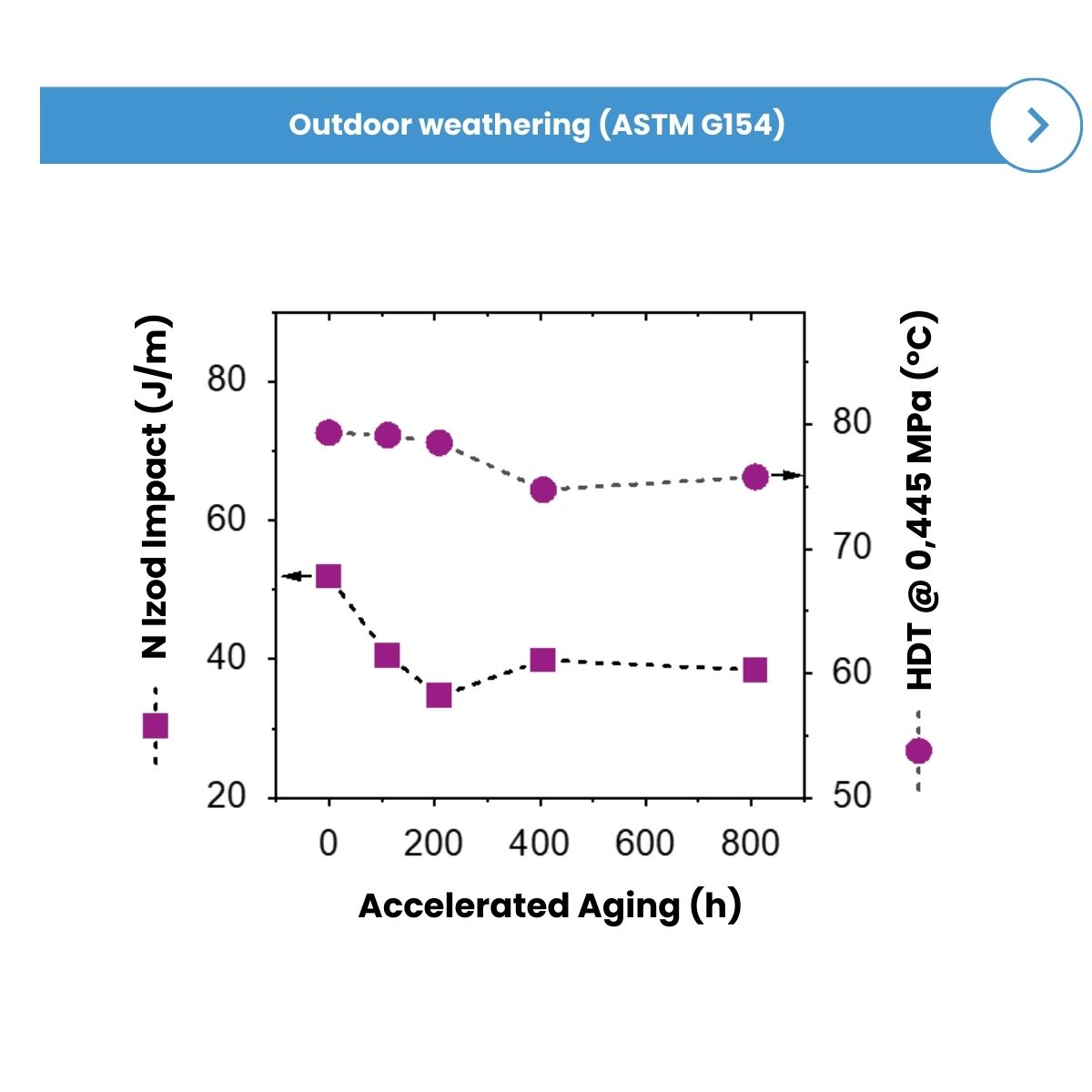

High temperature resistance
- Suitable temperature operation range to meet industrial application needs
Workflow INFINAM® RG 3101 L
01
PRINTING
a.) Tested on a variety of DLP printers
02
CLEANING
Isopropanol (IPA)
03
POST-CURING
1.) 120 min @ 80 °C with UV-light 2.) 180 min @ 80 °C thermal oven
Resources

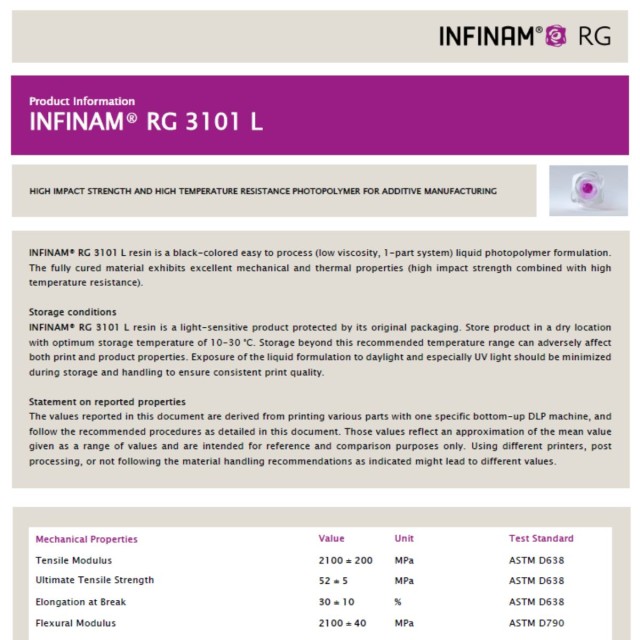

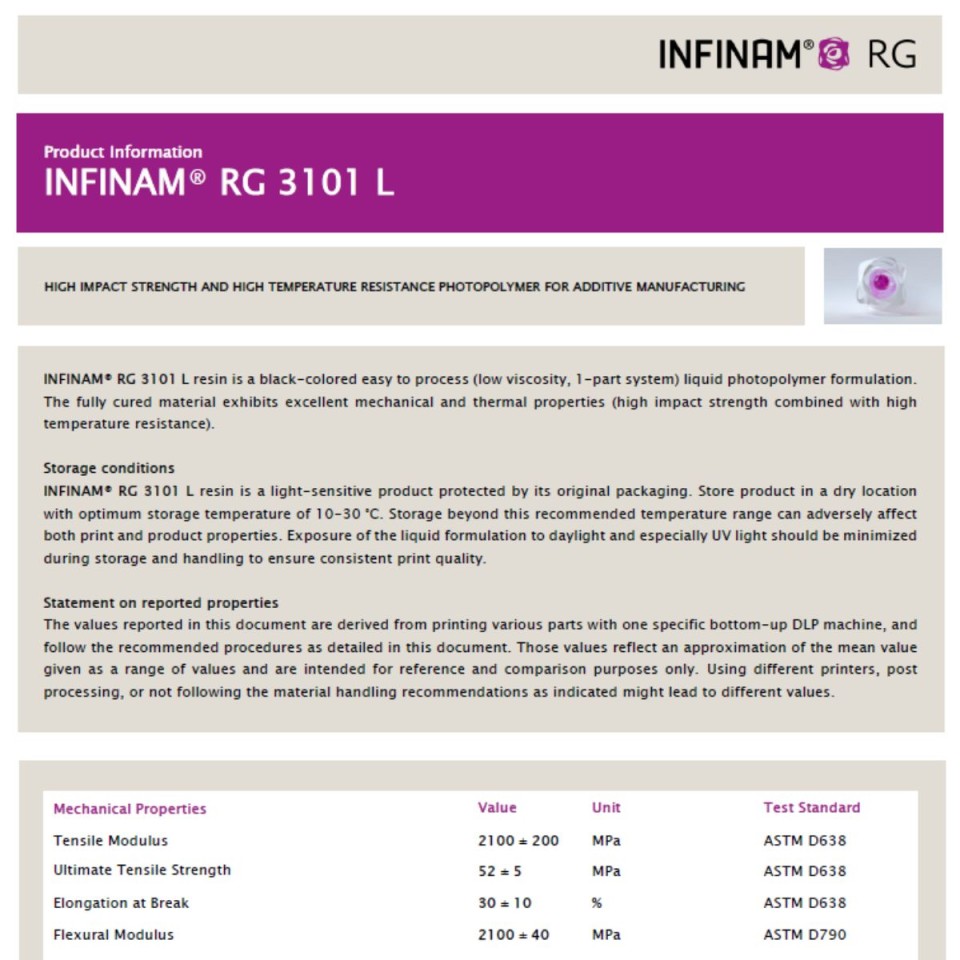

Material Data Sheet INFINAM® RG 3101 L
Get the PDF
Do you want to know if this material meets your needs?
Call us or send us an email and we will be happy to help you.
