High-capacity 100-liter chemical vapor smoothing system for PP 3D printed parts
The PostPro SF100 PP is a high-volume and closed-loop vapor smoothing system designed specifically for polypropylene (PP) 3D printed parts, providing zero-waste operation and enhanced surface treatment capabilities for this challenging material.
Johann Pfeifer
Account Manager

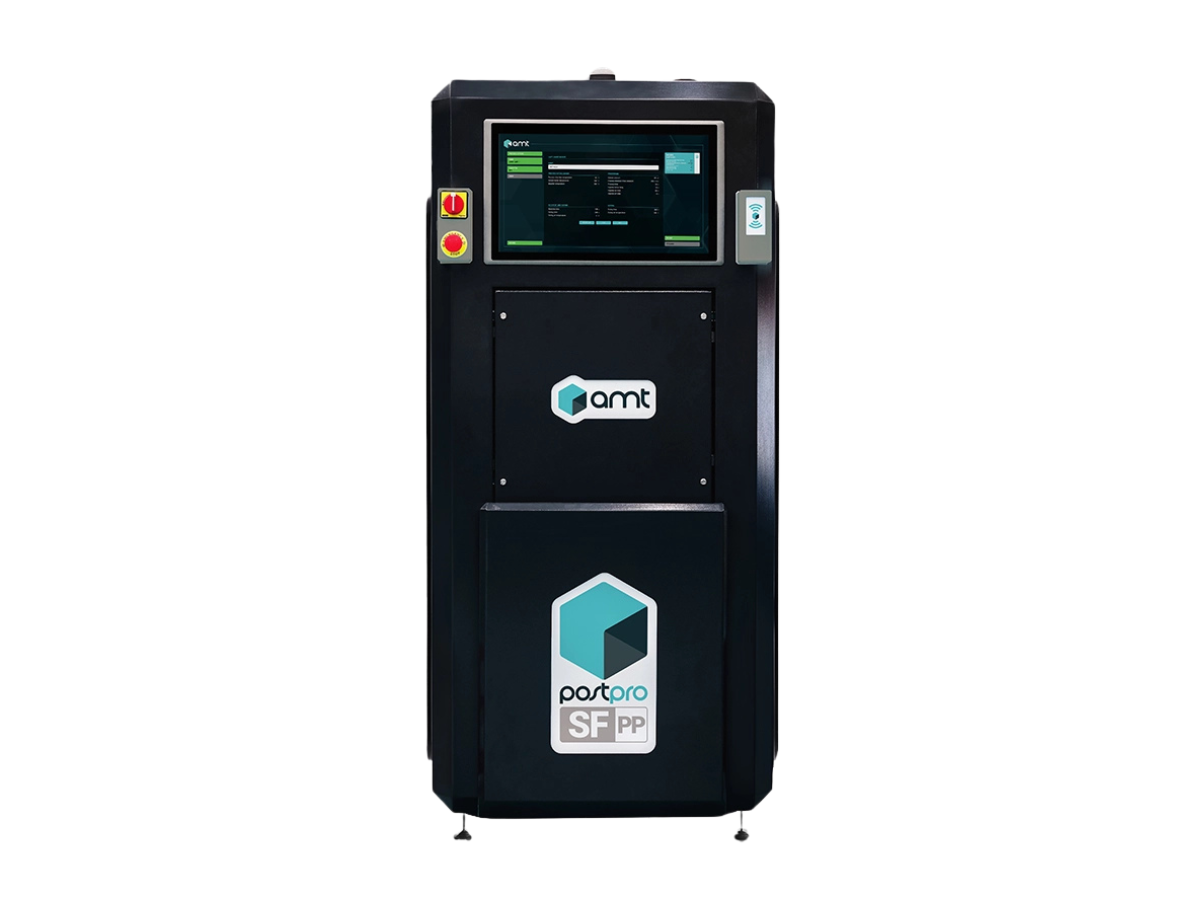

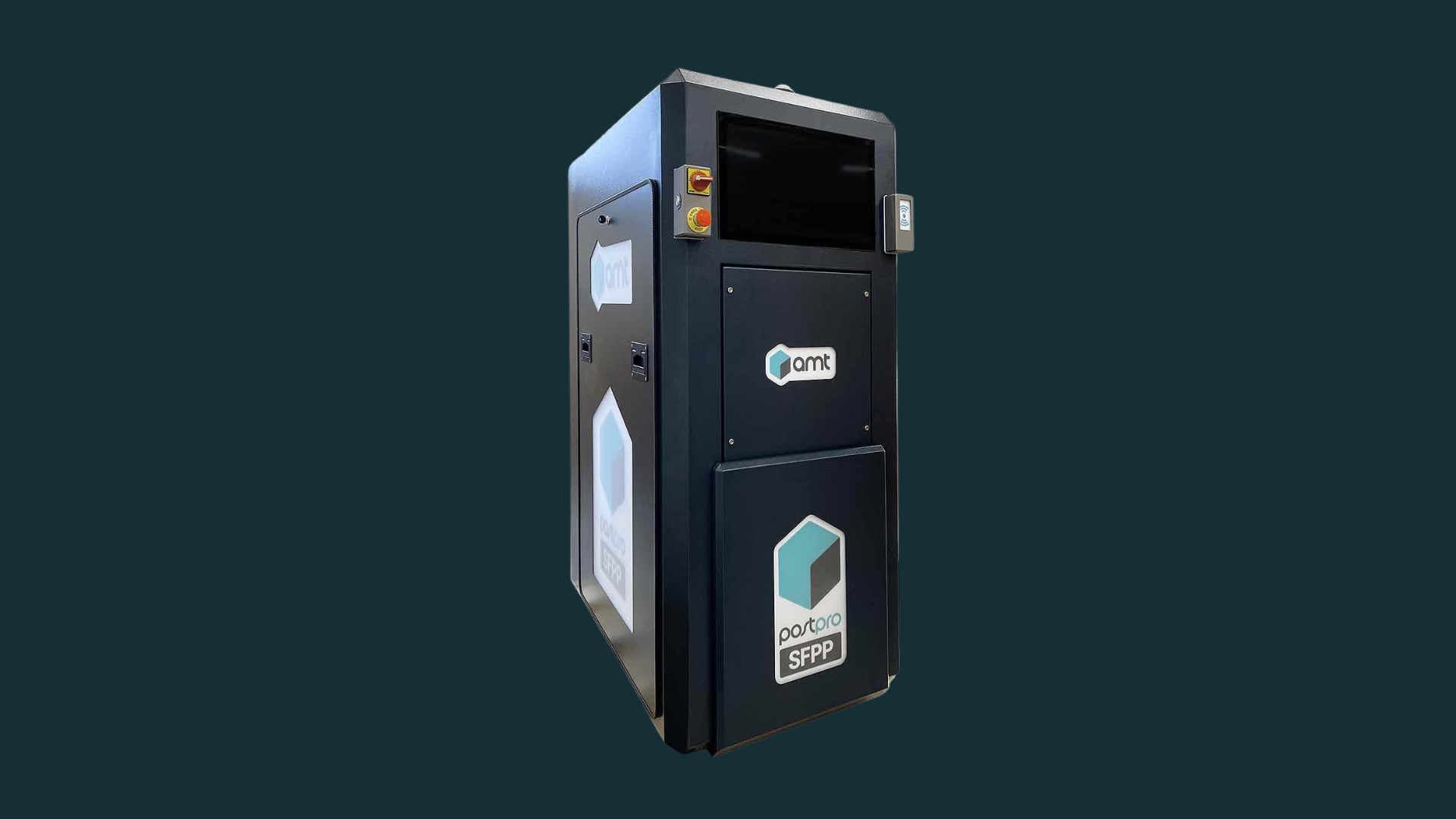

The PostPro SF100 PP is a cutting-edge chemical vapor smoothing system designed for high-volume manufacture of polypropylene (PP) 3D printed products. With a large 100-liter processing chamber, this machine uses AMT's proprietary Boundary Layer Automated Smoothing Technology (BLAST) to create injection molding-like surface qualities. This unique technology improves not only the cosmetic appearance of parts but also their mechanical attributes, such as tensile strength and elongation at break, making it appropriate for demanding applications in a variety of industries, including automotive and consumer goods.
The PostPro SF100 PP is compatible with polypropylene from several vendors, including Ricoh, BASF, HP, and AM Polymers. With its user-friendly interface and plug-and-play architecture, the PostPro SF100 PP is not only simple to use, but also allows for quick setup and maintenance, making it an excellent tool for organizations wishing to improve their polypropylene component post-processing capabilities.
Furthermore, the system's automation features enable easy interaction with external Manufacturing Execution Systems (MES) and Enterprise Resource Planning (ERP) systems, increasing workflow efficiency and allowing firms to obtain consistent outcomes across production batches.
Technical data:
Processing Chamber: 400 x 600 x 400 mm
Processing Chamber Volume: 96 liters
Compatible Technologies: MJF, SLS, HSS, SAF™, FFF, FGF, HSE, FDM
Compatible Materials: Mainly for Polypropylene (PP) but is also compatible with rigid plastics, elastomers and composite materials
Advantages
High-Volume Processing Capability
The PostPro SF100 PP has a large 100-liter processing chamber that enables for the simultaneous smoothing of several parts, greatly enhancing throughput and efficiency in industrial applications. This huge chamber size is very useful for manufacturers trying to optimize their manufacturing processes, as it allows them to cut cost-per-part while retaining high-quality surface finishes. The system is designed to handle a wide range of item sizes and geometries, making it adaptable to diverse production requirements and increasing operating productivity.
Proprietary Chemical Vapor Smoothing Technology
The PostPro SF100 PP uses AMT's proprietary Boundary Layer Automated Smoothing Technology (BLAST) to generate injection molding-like surface finishes with amazing precision. This non-line-of-sight method may smooth complicated geometries and internal voids in 3D printed items while maintaining their mechanical qualities. The vapor smoothing method not only improves the appearance of the parts, but it also improves their function by sealing surfaces against liquid and gas intake, which is critical for applications that require durability and dependability in harsh situations.
Industry 4.0 Automation and Integration
The PostPro SF100 PP, designed using Industry 4.0 principles, includes advanced automation features that allow for easy interface with external Manufacturing Execution Systems (MES) and Enterprise Resource Planning (ERP) systems. This connectivity enables real-time monitoring and management of the post-processing environment, which improves workflows and operational efficiency. The user-friendly interface, which includes a 21.5-inch Full HD touch screen, simplifies navigation and control, making it accessible to operators of different technical expertise while maintaining consistent outcomes throughout production batches.
Eco-Friendly Closed-Loop System
The PostPro SF100 PP stresses operator safety and environmental sustainability with its fully closed-loop design, which produces no waste during operation. It employs AMT's sustainable consumable, PostPro Pure, which not only assures safe handling but also conforms with strict environmental laws. This environmentally friendly approach enables producers to satisfy modern sustainability targets while still providing high-quality surface treatments. Furthermore, the system contains RFID canister recognition for consumables, which ensures accurate identification and connection, hence improving operational safety.
Enhanced Mechanical Properties
In addition to increasing surface quality, the PostPro SF100 PP improves the mechanical qualities of polypropylene parts by successfully reducing surface porosity and sealing them. Extensive testing has proven that parts produced with this technology retain their maximum tensile strength while demonstrating enhanced elongation at break. This combination of improved aesthetics and mechanical performance makes the PostPro SF100 PP an invaluable tool for manufacturers looking to produce high-quality end-use components that meet stringent industry standards in a variety of applications, including automotive, medical devices, and consumer products.

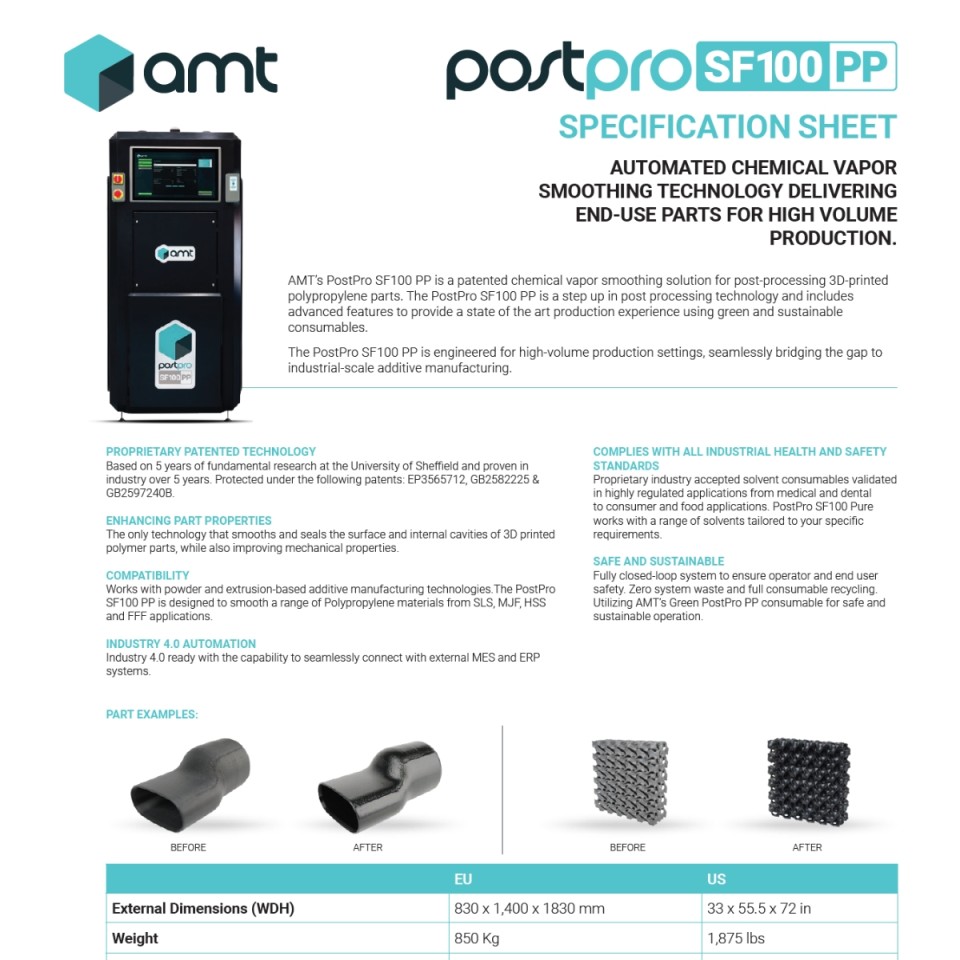

Data Sheet AMT PostPro SF100 PP
Get the PDF
