Versatile Industrial DLP 3D printer

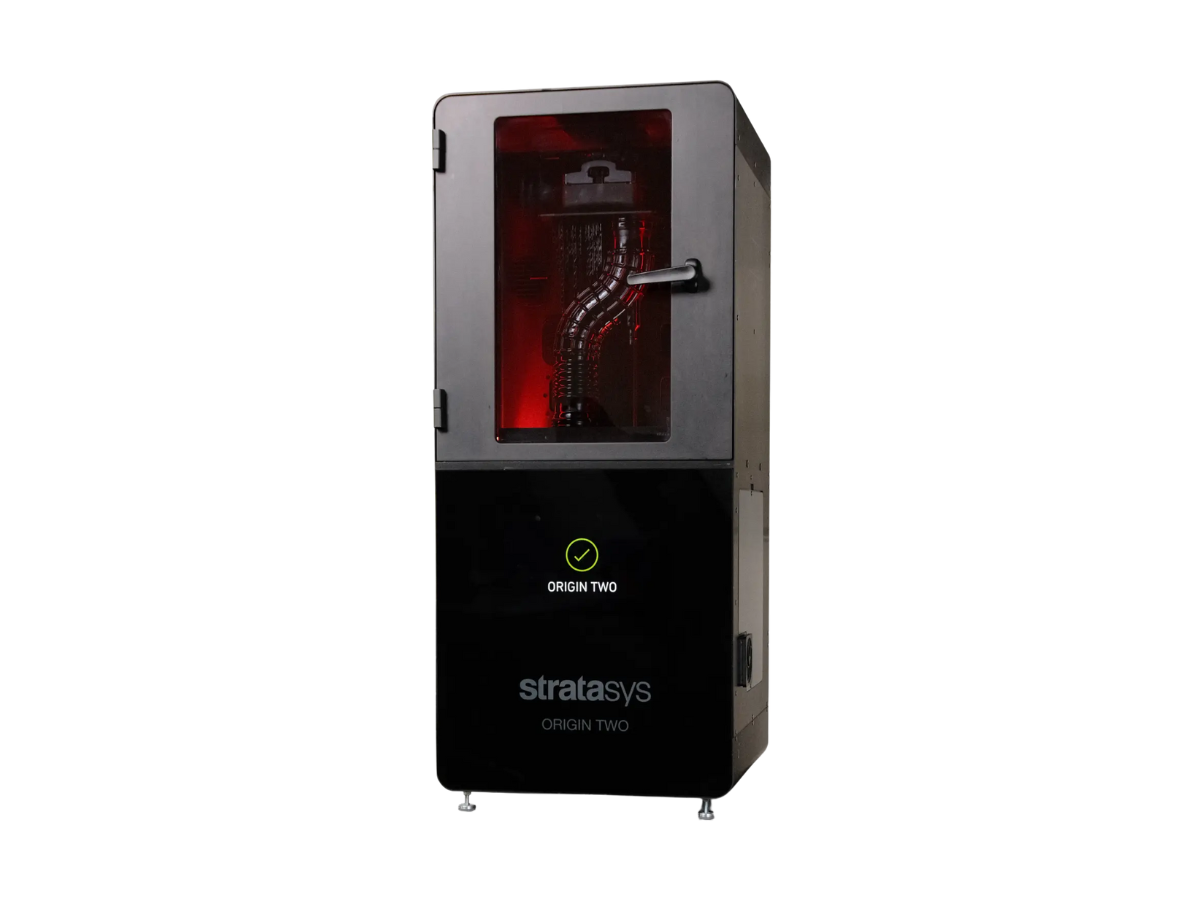

The Stratasys® Origin® Two achieves tolerances as tight as +/-50 µm and surface smoothness equivalent to injection molding because of its sophisticated P3™ DLP technology, which is driven by a state-of-the-art 5K DLP projector. The printer is perfect for manufacturing high-quality parts across a variety of high-performance materials.
Marc-Oliver Heißler
Account Manager
Redefining the benchmarks for industrial additive manufacturing, the Stratasys® Origin® Two is a revolutionary 3D printer. With the help of a state-of-the-art 5K DLP projector and sophisticated P3™ DLP technology, it produces remarkably accurate and smooth surfaces. This printer is perfect for industries like aerospace, automotive, and general transportation that need high-quality parts since it can reach tight tolerances as accurate as +/-50 µm. It differs from other resin technologies in that it can create parts with a surface smoothness that is on par with injection molding. This allows for on-demand manufacturing and short production runs for applications that require exceptional quality and performance.
The Origin® Two's open material system provides a wide variety of high-performance materials, enabling production flexibility. It can process high-temperature and high-viscosity resins because of its heated build chamber, which can withstand temperatures of up to 60°C. This printer is a dependable option for manufacturers because it is designed to provide constant quality without requiring regular recalibration. It also offers real-time data monitoring, guaranteeing optimal uptime and efficiency. The Origin® Two's sophisticated features and material variety make it a strong option for full-scale manufacturing as well as a potent prototype tool, assisting companies in overcoming supply chain obstacles and increasing production efficiency.
Technical Specifications:
Build Size: 192 x 108 x 370 mm
Layer Thickness: +/-50 μm (25 μm – 200 μm layers with OpenAM™)
Light Engine: 5K projector with 38.5 μm pixel size
Surface Finish: Surface roughness of up to 2μm Ra
Advantages
Advanced P3™ DLP Technology
Advanced P3™ DLP technology, which features a state-of-the-art 5K DLP projector, powers the Stratasys® Origin® Two. Tolerances as narrow as +/-50 µm in specific applications and +/-100 µm in general are achieved with this system, which provides outstanding precision and surface finish. The projector is perfect for sectors that demand exceptional part quality because of its 38.5 µm pixel size and strong 2.5 standard deviation projector uniformity, which guarantee consistent outputs without pixel-to-pixel light bleed. Operating at a wavelength of 385 nanometers, it accommodates a wide variety of high-performance materials and improves precision when compared to alternatives operating at 405 nanometers.
Open Material System
The Origin® Two provides the most extensive selection of high-performance materials available on the market thanks to its open material system. High-temperature and high-viscosity resins, including those with a Heat Deflection Temperature (HDT) of up to 300°C35, may be reliably printed thanks to its heated build chamber, which keeps temperatures up to 60°C. Aerospace, automotive, and medical devices are just a few of the many industrial applications that can benefit from this capabilities, which supports materials ranging from stiff and flexible to biocompatible versions.
High Part Quality
The Origin® Two is perfect for applications that demand high-quality parts because it produces surface finishes that are similar to injection molding and have a smoothness of up to RA 2 µm. This outstanding surface quality is a result of the sophisticated DLP projector and the pneumatic separation system, which uses little separation force and requires fewer supports for post-processing. This produces parts that are both aesthetically pleasing and durable in terms of functionality, making them appropriate for end-use production in demanding sectors. Furthermore, the Origin® Two continuously maintains high-quality output across all prints without the need for modifications, in contrast to other 3D printers that necessitate periodic recalibration. The printing process's reproducibility across several printers and build heads has been confirmed by trials.
Productive
The Origin® Two is made to increase productivity and streamline processes. It guarantees optimal productivity and availability by offering real-time data monitoring that delivers insights into every facet of the manufacturing process. Maximum geometric freedom is made possible by the printer's pneumatic system, which can handle fine details and wide cross-sections, minimizing the need for extra post-processing. Furthermore, post-processing is made possible by the proven curing choices, usually lasting only a few minutes, which is crucial for industrial production environments.
Runs a Powerful Software
The integration of Stratasys® Origin® Two with GrabCAD Print™, a powerful software program made to simplify and streamline 3D printing processes, greatly improves the user experience. By making it simple for users to import CAD files, alter print parameters, and keep an eye on projects in real time, GrabCAD Print™ streamlines workflow management. It offers sophisticated functions like material selection and support generation, guaranteeing that prints are tailored for particular uses. Additionally, the program facilitates cooperation by allowing many people to remotely access and manage print tasks. The Origin® Two's integration of GrabCAD Print™ provides a smooth and user-friendly interface that cuts down on production time, enhances team cooperation, and improves part quality.
Applications
Automotive and Aerospace Components
Manufacture automotive and aerospace-grade parts that need to be produced with extreme precision, tight tolerances, and a high-quality surface finish which are durable and have thermal resistance.
Medical Devices
Produce medical devices with the help of the open material platform that contains biocompatible materials to create parts that satisfy strict medical standards requiring its precision and surface polish capabilities.
Industrial Tooling and Manufacturing Aids
Create 3D printed fixtures, jigs, and custom manufacturing aids in place of expensive and time-consuming machined tools with quick turnaround times.
On-Demand Spare Parts and Custom Production
Produce customized aircraft components, spare parts and even specialized car parts tailored to specific models or customer requests, allowing for rapid response to changing market demands.
Data Sheet Stratasys® Origin® Two
Download PDF
