INFINAM® ST 6100 L

INFINAM® ST 6100 L (High Temperature)

INFINAM® ST photopolymers fill the material gap in high-strength materials for photo-curing 3D printing technologies (SLA, DLP).

Marc-Oliver Heißler Account Manager

Evonik's INFINAM® ST 6100 L photopolymer resin 3D printing material is a milestone for industrial 3D printing. Specially developed for polymerization technologies such as SLA (stereolithography) or DLP (digital light processing), this high-performance material unlocks the potential of large-scale additive manufacturing.

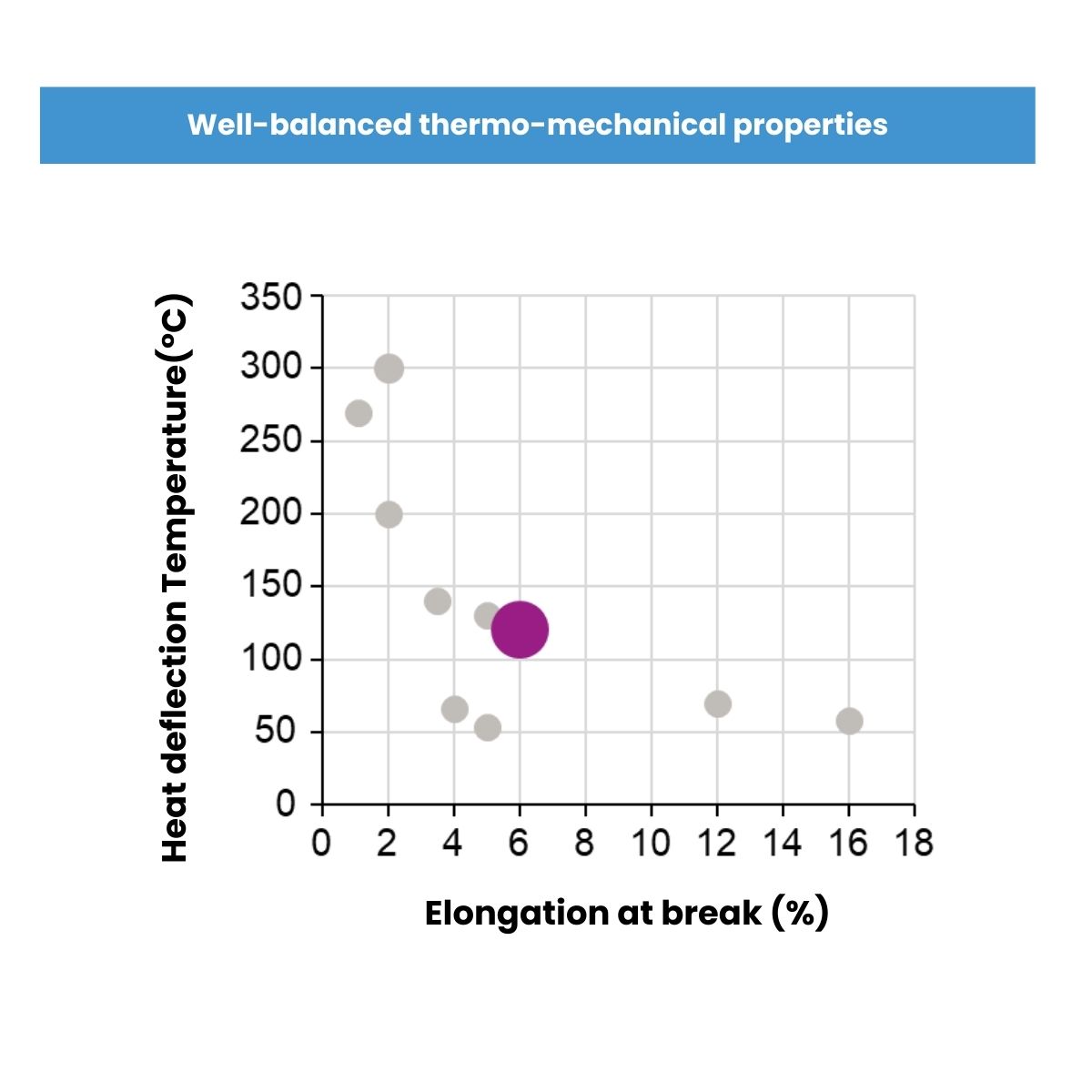

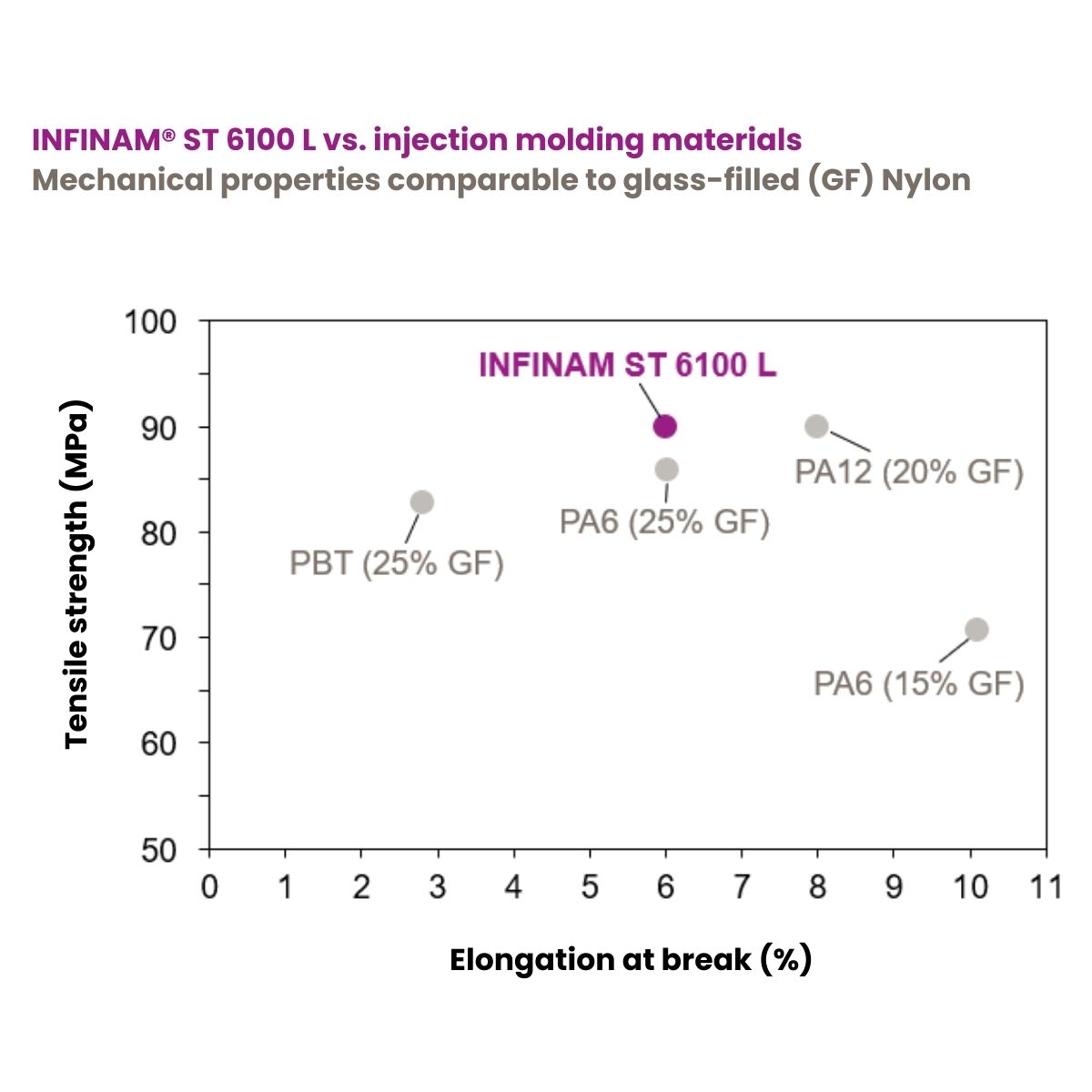

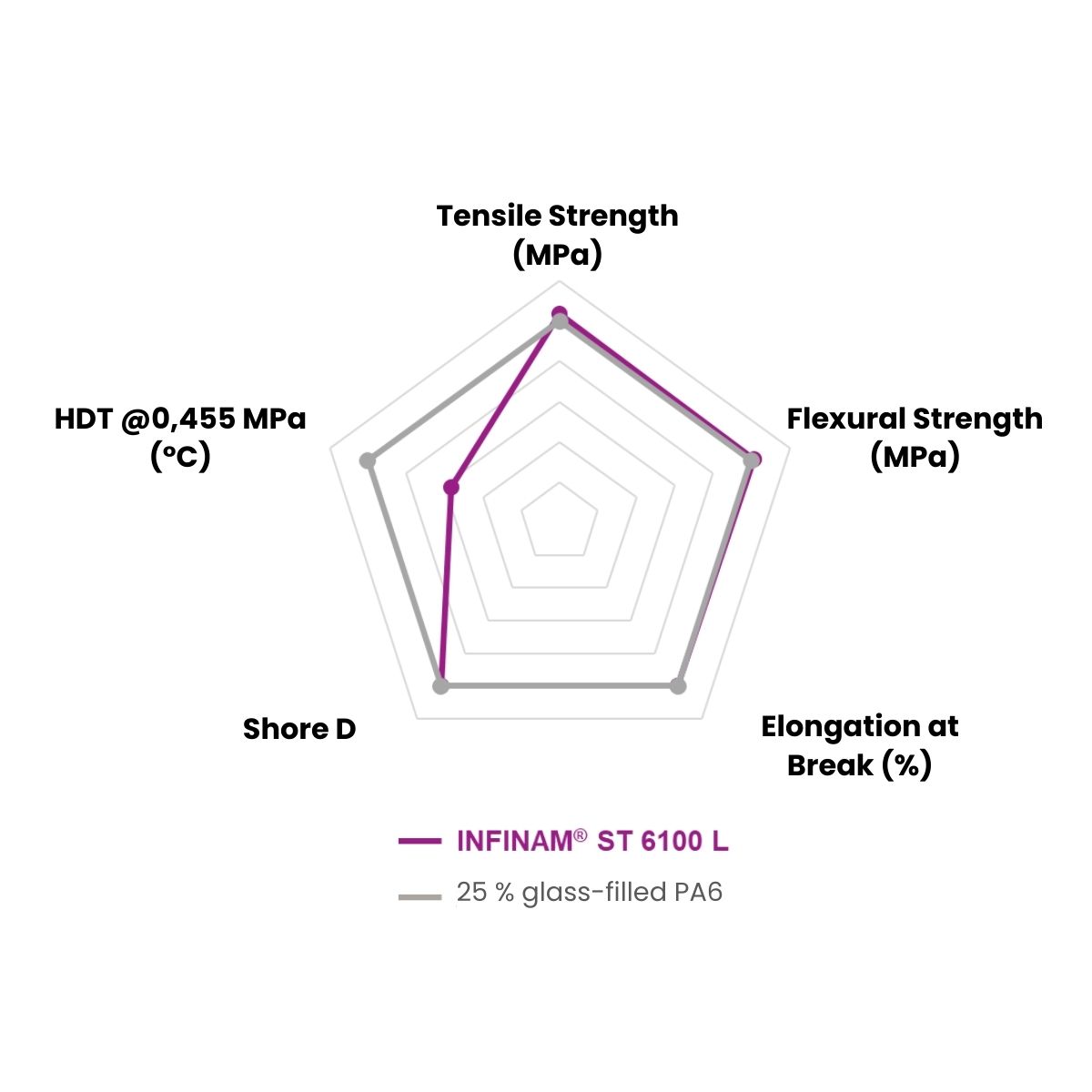

INFINAM® ST6100 L sets new standards in the high-strength photopolymer resin category with a combined tensile strength of 89 MPa, flexural stress of 145 MPa and HDT of 120 °C, closing the material gap in ultra-high-strength photopolymers. These special material properties make INFINAM® ST 6100 L the material of choice for applications requiring high temperature resistance combined with high mechanical strength.

Applications

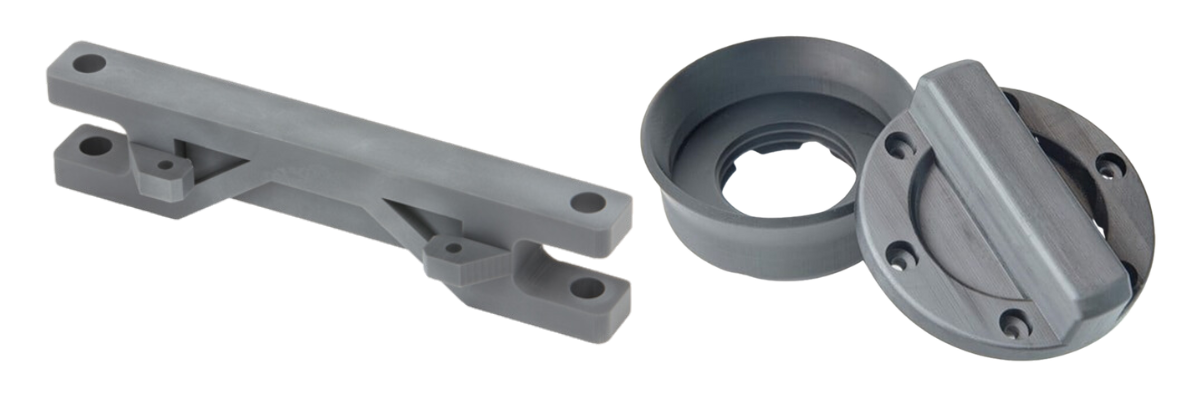

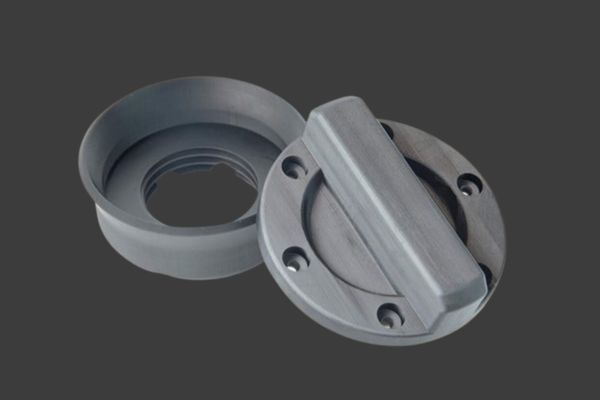

INFINAM® ST 6100 L allows users to print high-precision parts with exceptional mechanical properties, including high tensile strength, toughness and impact resistance. The material is also chemical and temperature resistant, making it suitable for a wide range of industrial applications.

In addition, the material's exceptional precision and surface finish make it an ideal choice for applications that require a high level of detail and quality. These include the production of molds, models and tools, as well as parts for the aerospace, automotive or electronics industries.

Technical Information

INFINAM® ST 6100 L

Strong, machinable & temperature resistant

Excellent mechanical properties

- High strength combined with elongation

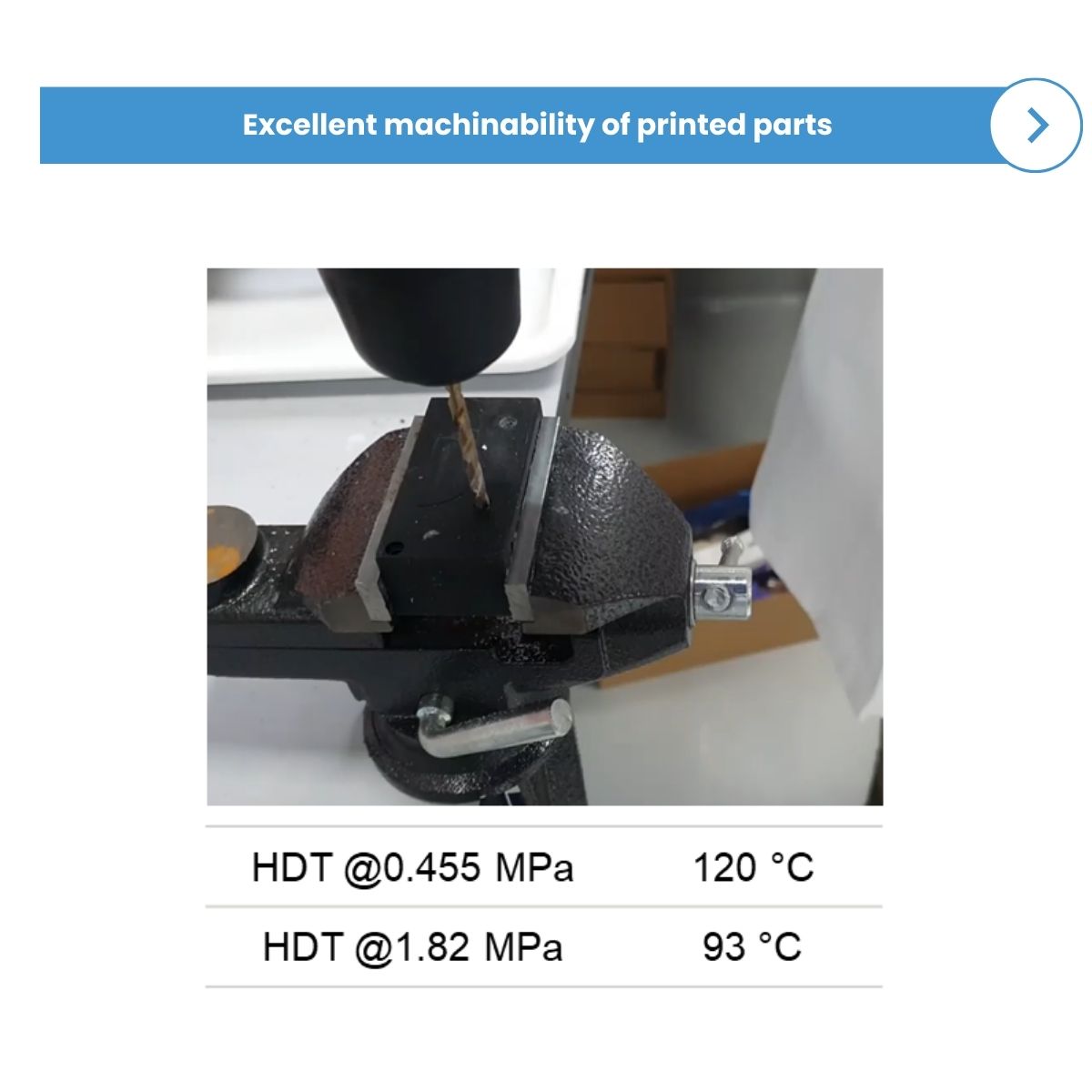

- Machinable

High temperature resistance

- At high temperature mechanical properties are retained

High precision & Easy-to-process

- 1-part system with extended pot-life

- Low viscosity

Workflow INFINAM® ST 6100 L

01

PRINTING

a.) Tested on a variety of DLP printers b.) Efficient printing on SLA systems (355 nm)

02

CLEANING

Isopropanol (IPA)

03

POST-CURING

1.) 120 min @ 80 °C with UV-light 2.) 180 min @ 110 °C thermal oven

Resources

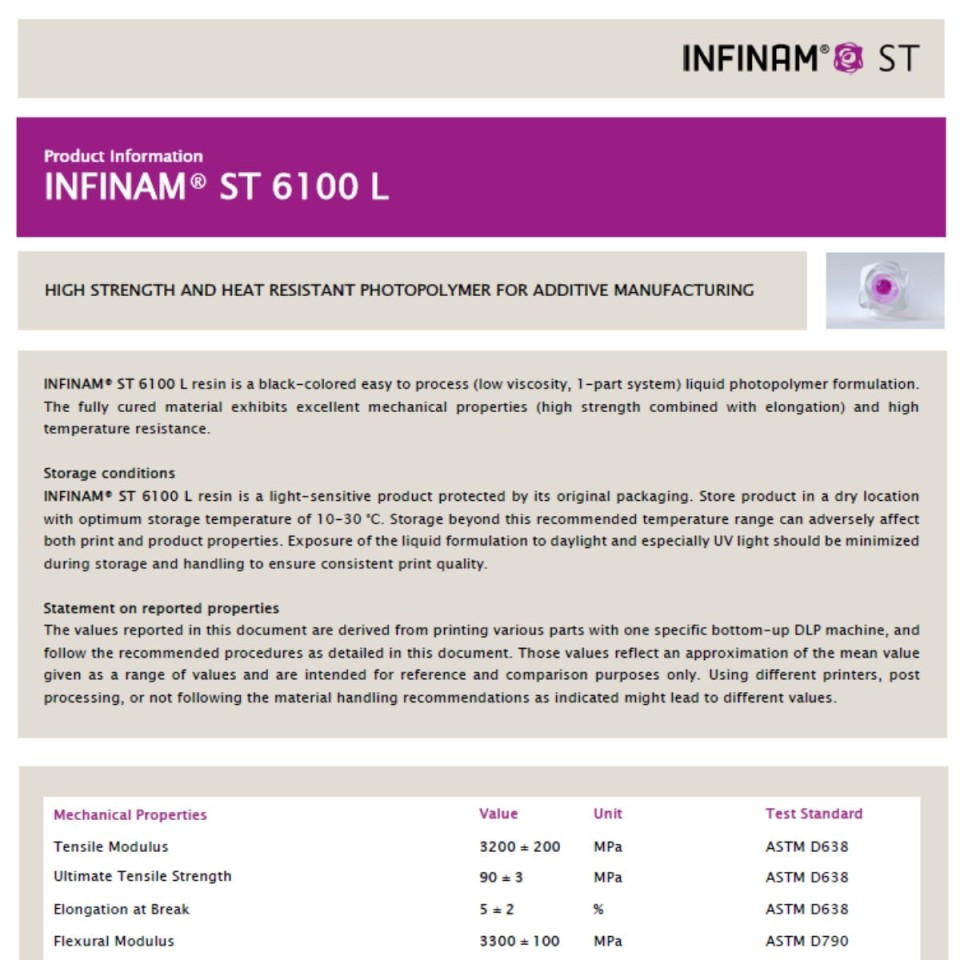

Material Data Sheet INFINAM® ST 6100 L

Get the PDF

Use Cases

  • XiP, INFINAM® ST 6100 L

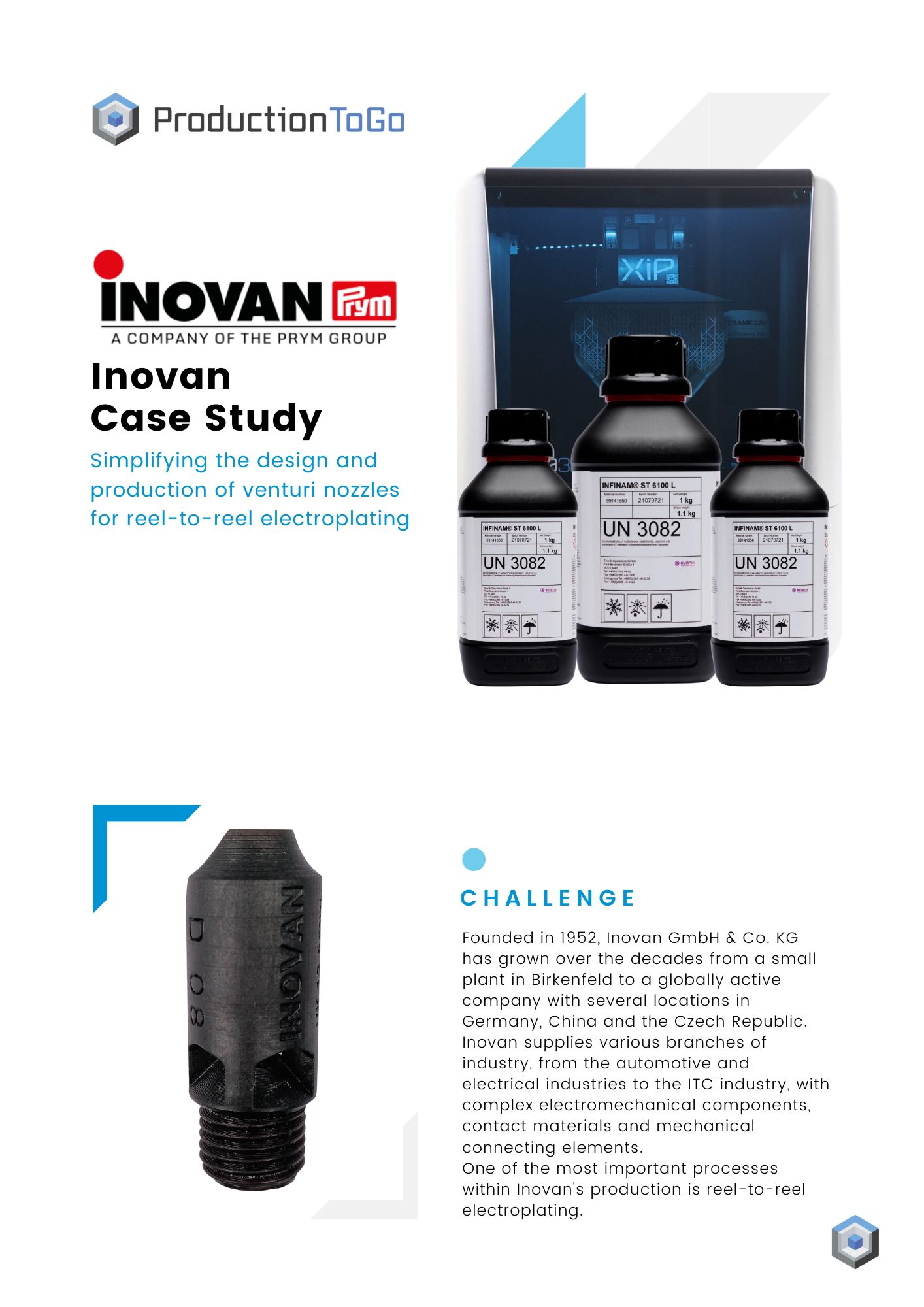

    Inovan - Simplifying the design and production of venturi nozzles for reel-to-reel electroplating
