Revolutionizing Resin Removal for Large-Scale SLA Printing

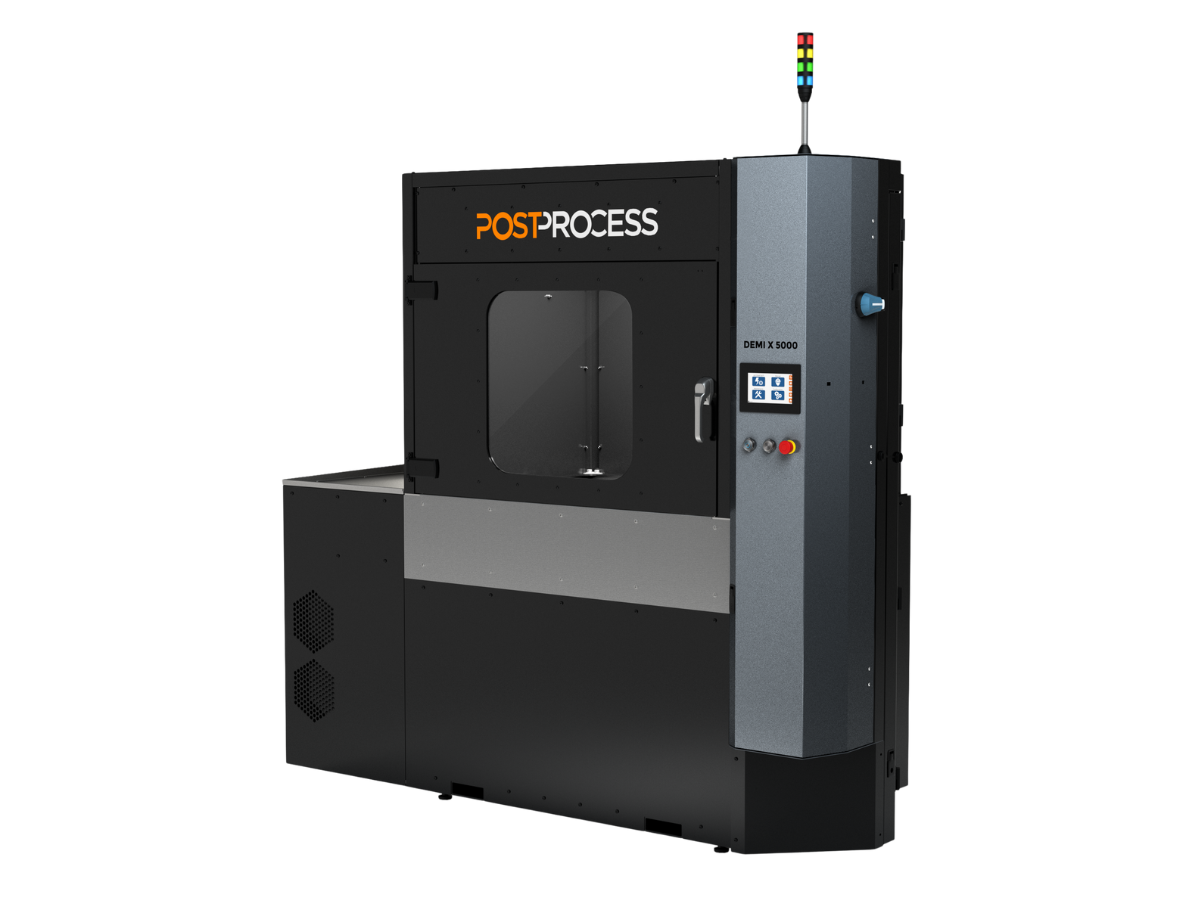

The DEMI X 5000™ sets a new industry standard in post-processing automation, designed specifically for large SLA parts that demand fast, thorough, and repeatable resin removal. Combining vertical and horizontal dual agitation technology, it achieves superior cleaning performance even on complex geometries with hidden or concave surfaces.
Marc-Oliver Heißler
Account Manager
The DEMI X 5000™ is a breakthrough solution in automated resin removal that maximizes throughput by processing large SLA build parts in 10 minutes or less, significantly reducing manual labor and cycle times. Its dual agitation flow mechanism creates powerful vertical and horizontal vortices, delivering enhanced detergent circulation that excels at removing stubborn resin from intricate features without damaging parts.
With a large processing envelope and heavy-duty build plate handling capacity of up to 200 lbs (90 kg), the system accommodates a wide range of large-scale prints from leading SLA manufacturers like Stratasys, 3D Systems, and UnionTech. The adjustable tilt mechanism promotes optimal detergent contact across part surfaces, improving cleaning uniformity and efficiency.
Sustainability is prioritized through the use of proprietary detergent chemistry that offers 10 times longer service life compared to conventional solvents like IPA, drastically reducing chemical waste and operational costs. The fully sealed enclosure limits vapor escape, contributing to a safer, cleaner workplace, while integrated software controls orchestrate the entire cleaning cycle seamlessly, allowing easy recipe customization, storage, and repeatability.
Technical Specifications:
Envelope Capacity: 89 × 89 × 63.5 cm
Lift Capacity: 90 kg
Consumables Capacity: 1,041 liters
Certifications: CE, SGS
Advantages
Dual Agitation Flow
The DEMI X 5000™ features vertical and horizontal vortex flows that work together to create a powerful multi-vortex effect. This ensures deep and thorough resin cleaning, even in hidden or concave surfaces, improving part quality and reducing manual cleaning effort.
Enhanced Safety and Environmental Control
Its fully enclosed chamber design minimizes vapor emissions, creating a safer and cleaner workspace for operators. Additional safety features like emergency stop and interlocked doors further protect users during the cleaning process.
Fast Cycle Times
Capable of processing large-scale SLA parts in 10 minutes or less, the system significantly reduces post-print labor and speeds up overall production workflows. This rapid cycle time supports high-volume manufacturing needs and shortens lead times.
Intelligent Automation
The integrated AUTOMAT3D platform allows one-touch operation, recipe customization, and automated load/unload sequences. This software-driven automation ensures cycle repeatability and reduces operator error, enhancing production consistency.
Large Build Capacity and Robust Handling
Designed to accommodate build plates up to 200 lbs (90 kg), the DEMI X 5000™ can clean large or multiple parts in a single cycle. Adjustable support arms and spring-loaded grippers simplify handling of heavy or oversized loads, improving ergonomics.
Sustainable Detergent with Long Service Life
Using a proprietary, non-flammable chemistry, the system reduces chemical waste by up to 10 times compared to traditional solvents like IPA. This lowers operational costs and aligns with sustainability goals by minimizing hazardous waste disposal.

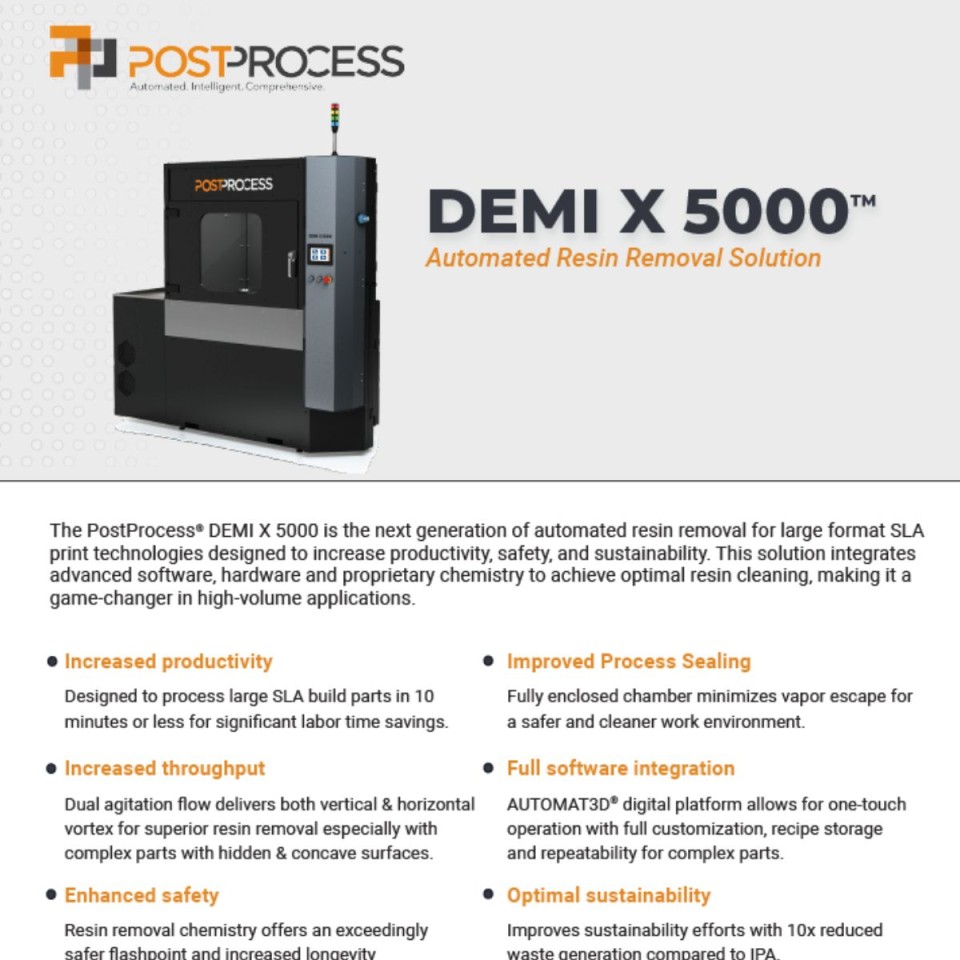

Data Sheet PostProcess® DEMI X 5000™
Get the PDF
