INFINAM® TI 5400 L (PVC-like)
INFINAM® TI photopolymers lead to high toughness and impact-resistant 3D printed parts manufactured in common photo-curing technologies.
Marc-Oliver Heißler
Account Manager

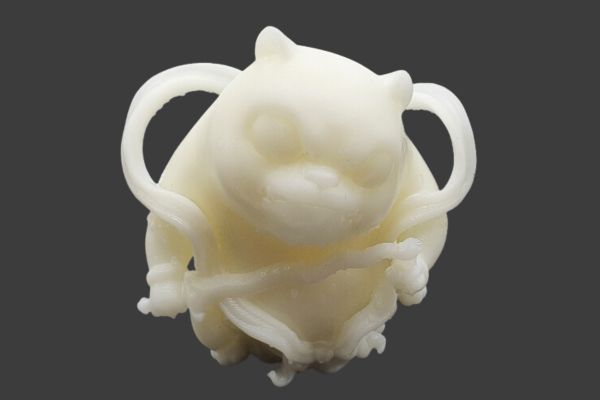

With this formulation, Evonik is responding to customer demand for a PVC-like resin for the fast-growing market of limited designer toys. The white-colored material is ideal for objects with a high level of detail and excellent surface quality that are virtually indistinguishable from comparable injection-molded parts. The fully cured material combines excellent impact strength with high elongation at break and exhibits long-lasting thermomechanical performance.

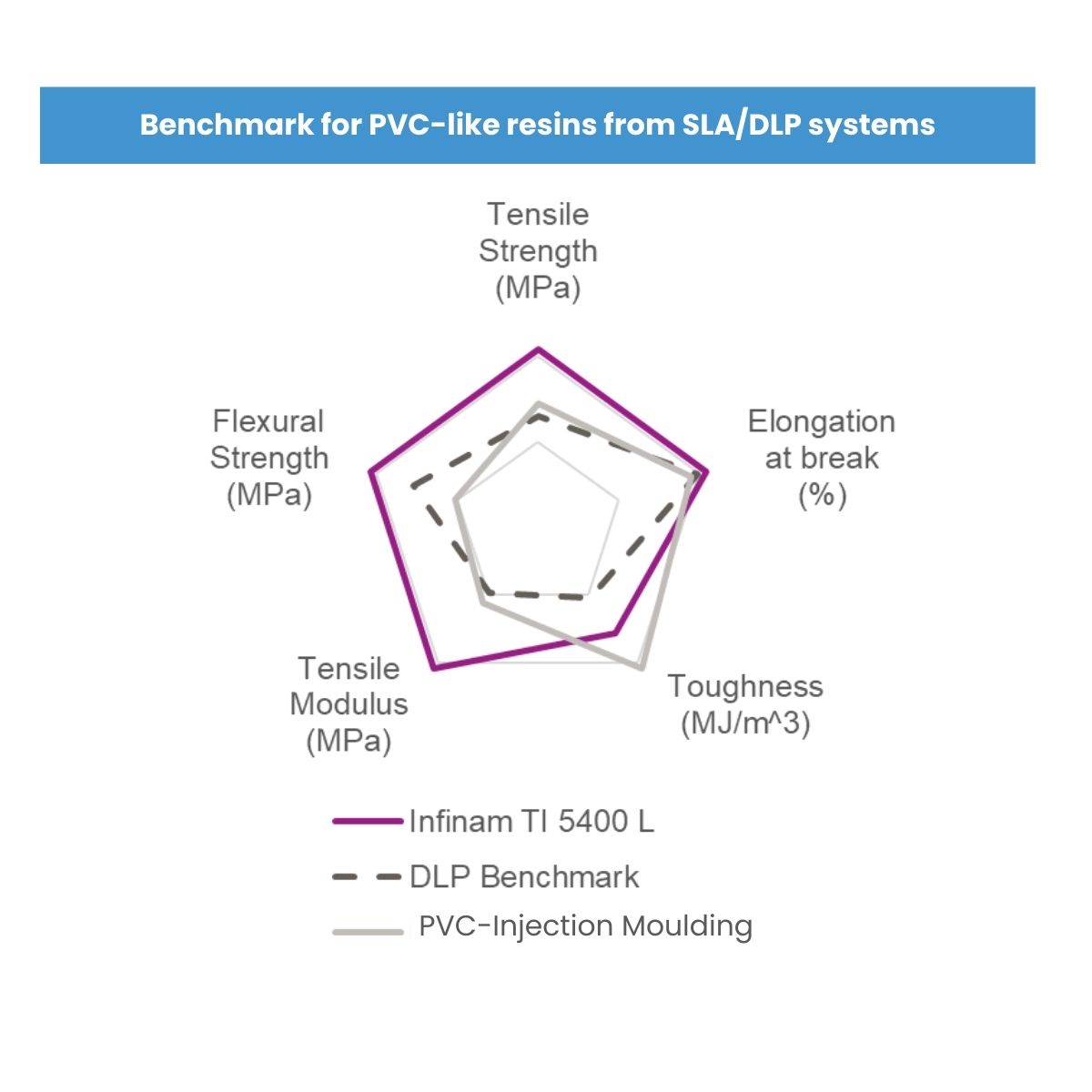

Technical Information:
Tensile Strength (MPa) = 40
Elongation at break (%) = 200
Toughness (MJ/m^3) = 60
Tensile Modulus (MPa) = 1500
Flexural Strength (MPa) = 44
Applications
The spectrum of possible applications ranges from industrial components and automotive parts to individual applications in the consumer goods sector, which require not only design-free shapes but also strong mechanical resistance in object use.
Technical Information
INFINAM® TI 5400 L
Tough, ductile & easy-to-process

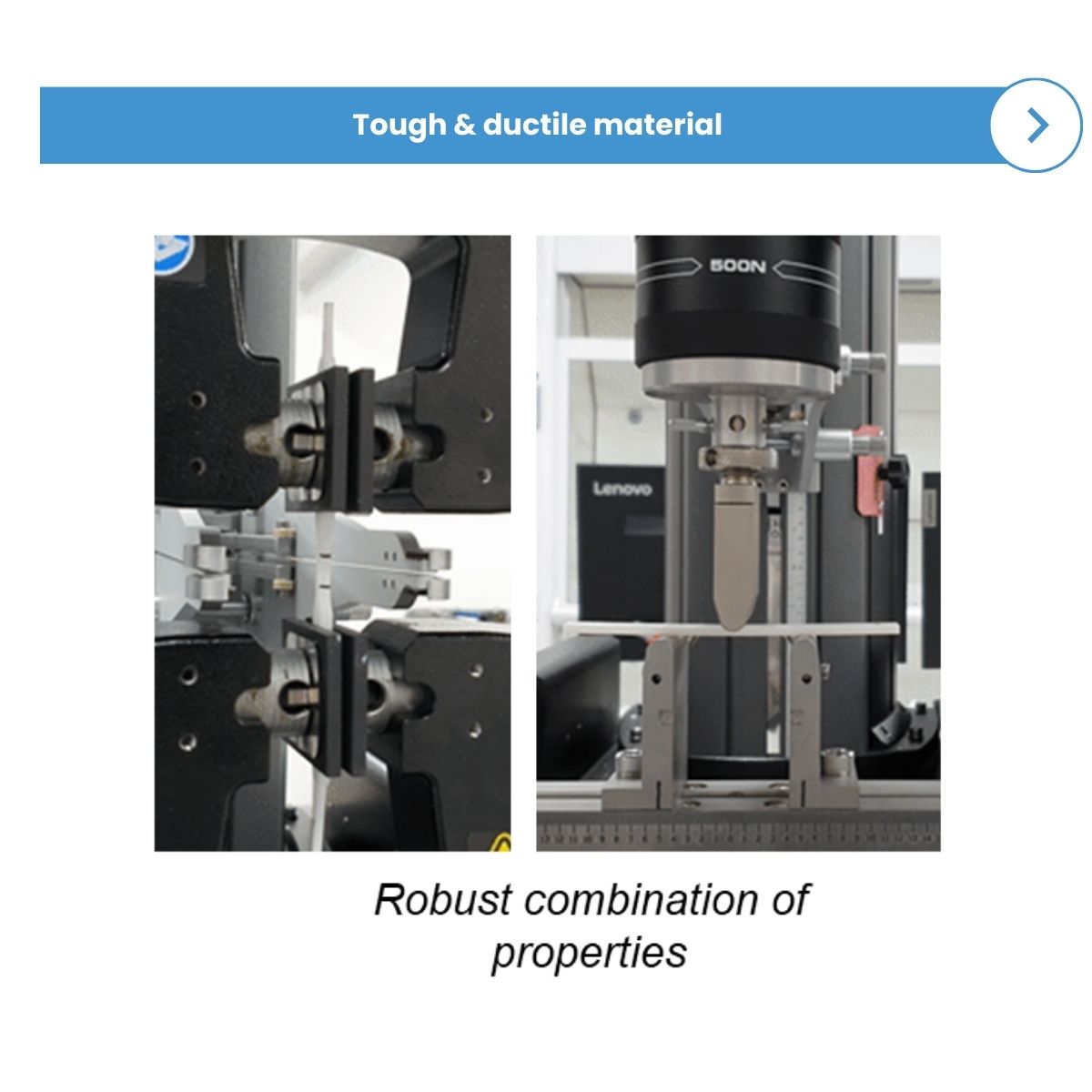

Excellent Mechanical Properties
- High toughness
- High impact resistance
- Flexibility (polypropylene characteristics)
White Color
- White color is perfectly suitable for coating and painting
High precision & Easy-to-process
- 1-part system
- Excellent print stability
Workflow INFINAM® TI 5400 L
01
PRINTING
Tested on a variety of DLP printers
02
CLEANING
Tripropylene glycol methyl ether (TPM)
03
POST-CURING
1.) 120 min @ 80 °C with UV-light 2.) 180 min @ 80 °C thermal oven
Resources

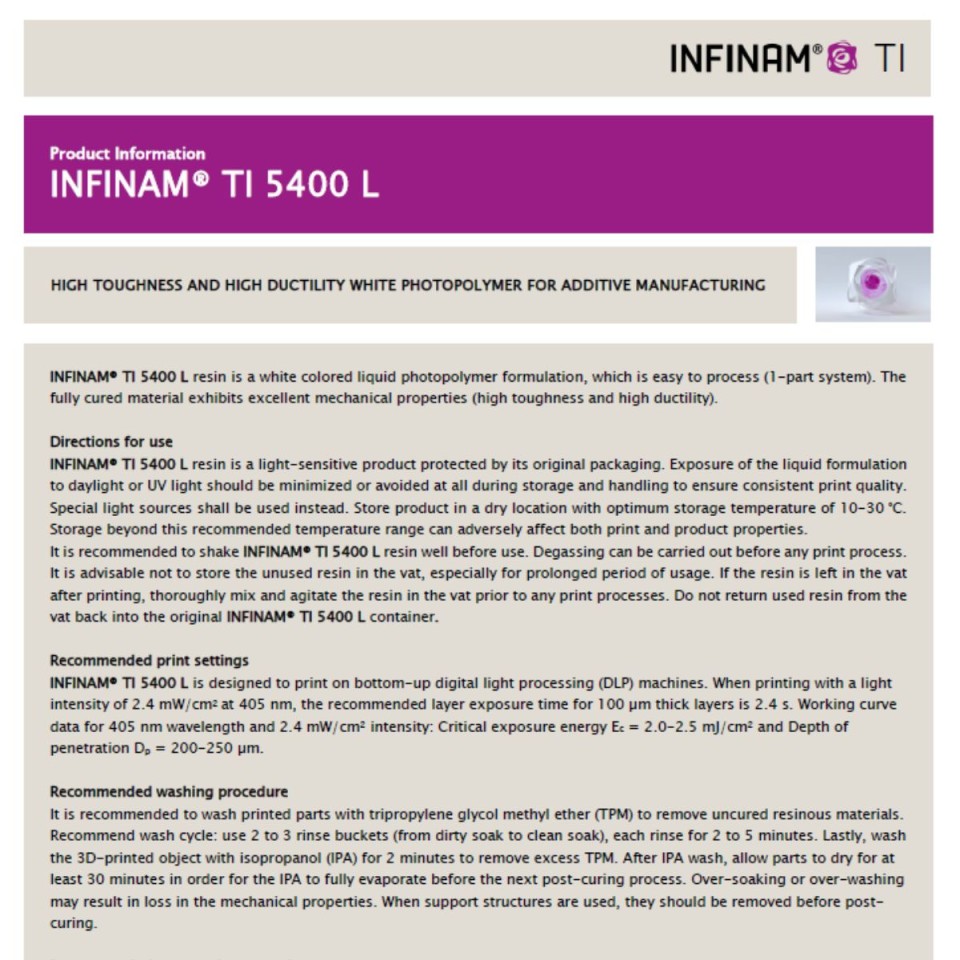

Material Data Sheet INFINAM® TI 5400 L
Get the PDF
