Tritone Dominant System

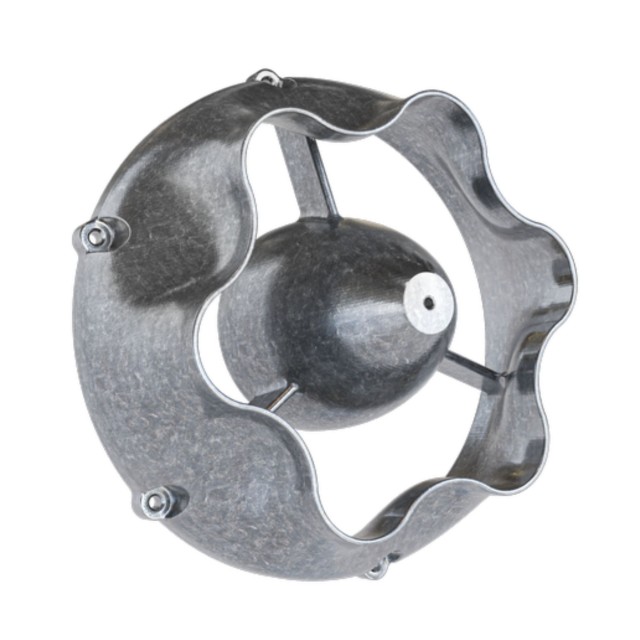

The 15-5 PH stainless steel drom Tritone is a martensitic, precipitation-hardening alloy combining high strength, excellent corrosion resistance, and good mechanical performance. It maintains its properties up to approximately 315 °C, demonstrating toughness, good ductility, and stability even after heat treatment. 15-5 PH is widely used in aerospace, chemical, petrochemical, food processing, paper, and general engineering applications. The alloy’s properties can be tailored by solution treatment and aging, allowing for precise hardness and strength adjustments.

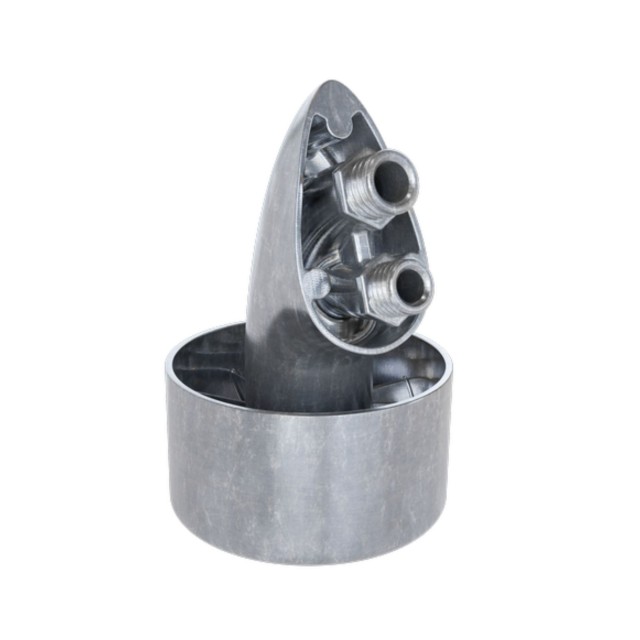

The 17-4 PH stainless steel from Tritone is a precipitation-hardening martensitic alloy offering high strength, excellent corrosion resistance, and good machinability. It is widely used in aerospace, chemical processing, food industry, pulp and paper, and general metalworking applications. This alloy can be heat treated to achieve high strength and hardness without compromising toughness. The Tritone 17-4 PH variant, utilizing MoldJet technology, delivers superior strength while maintaining excellent toughness, making it ideal for demanding industrial components.

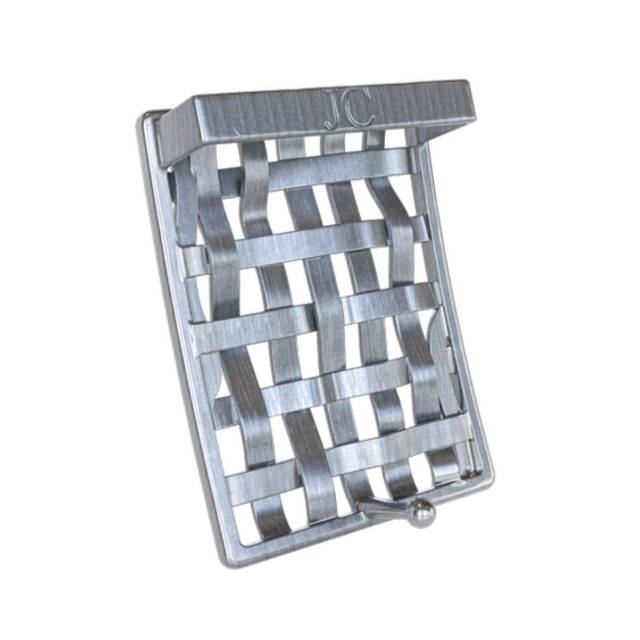

Tritone 316L is a widely used austenitic stainless steel known for its excellent corrosion resistance and strong mechanical performance. Alloyed with chromium (16–18%), nickel (10–13%), and molybdenum (2–3%), it performs well under high creep stress at elevated temperatures and remains durable even at cryogenic temperatures. Common applications include chemical and petrochemical processing, food and pharmaceutical equipment, medical devices, marine environments, and jewelry.

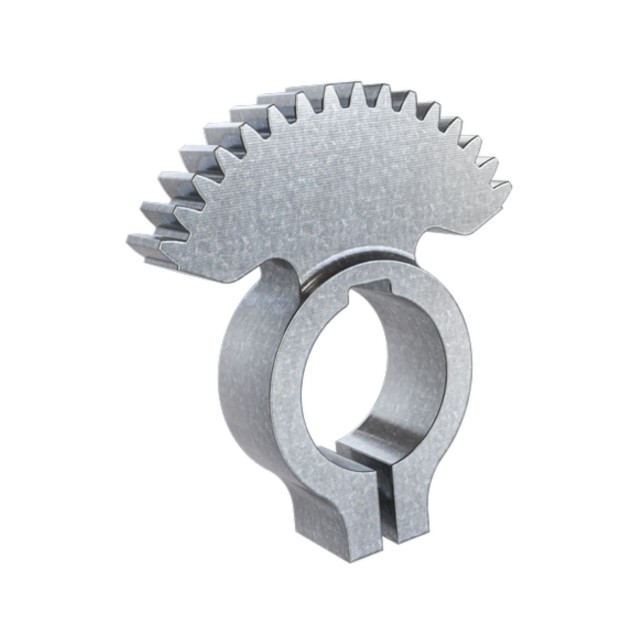

Tritone 4340 is a low-alloy, heat-treatable steel alloyed with chromium, nickel, and molybdenum. It is primarily used in power transmission gears, shafts, aircraft landing gear, and other structural components requiring high toughness and strength. When heat treated, 4340 steel can achieve hardness levels above 53 HRC while maintaining excellent toughness and fatigue resistance. Its balanced composition ensures superior wear resistance and performance under high-stress conditions.

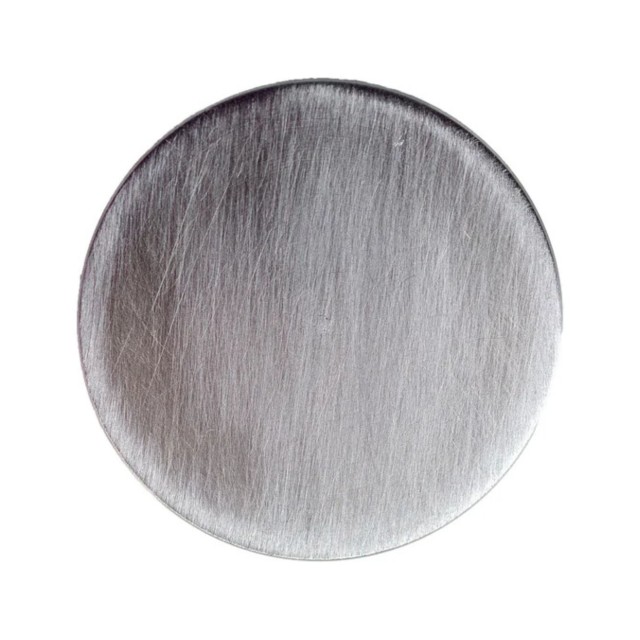

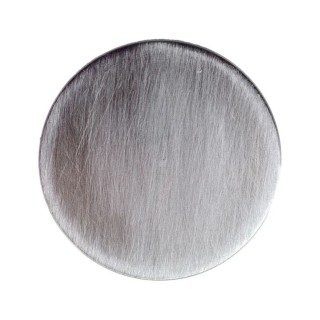

Tritone 4140 is a low-alloy steel alloyed with chromium, molybdenum, and manganese. It features high fatigue strength, excellent abrasion and impact resistance, toughness, and torsional strength. Widely used for gears, shafts, bolts, and fasteners in automotive, aerospace, oil and gas, and manufacturing industries, 4140 steel exhibits tensile strength around 655 MPa, yield strength approximately 415 MPa, and Brinell hardness near 197. MoldJet technology enhances its strength without sacrificing toughness, making it ideal for high-stress applications.

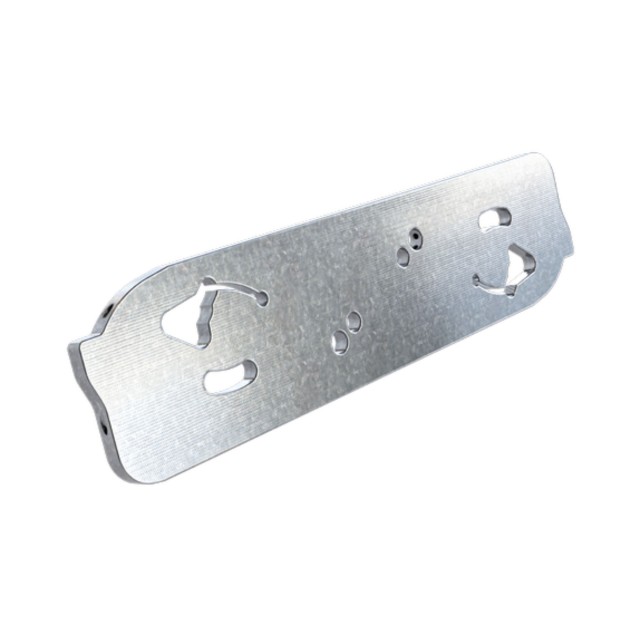

Tritone H13 is a chromium-molybdenum-vanadium hot-work tool steel renowned for its excellent combination of high toughness and fatigue resistance, outperforming most other tool steels. It maintains high mechanical integrity and hardness (>52 HRC) even under extreme thermal cycling up to 600°C. The steel shows superior resistance to thermal fatigue, wear, and thermal softening, making it ideal for demanding applications such as hot forging dies, extrusion dies, and die-casting molds. MoldJet technology enhances its strength without sacrificing toughness, ensuring durability in high-temperature tooling environments.

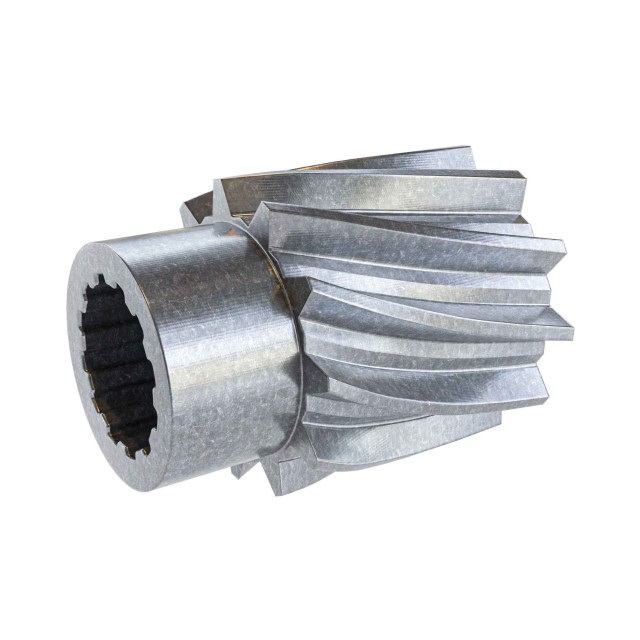

Tritone M2 is a molybdenum-based high-speed tool steel characterized by a high carbon content that enables exceptional hardness levels above 64 HRC after hardening and tempering. Comprising tungsten, molybdenum, chromium, vanadium, and carbon, this steel balances superb wear resistance with maintained toughness. It is widely used in cutting and forming tools such as drill bits, milling cutters, taps, and dies. MoldJet technology further enhances its strength and durability for demanding high-speed and precision applications.

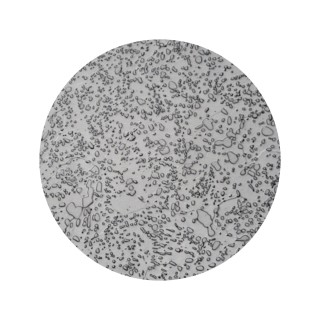

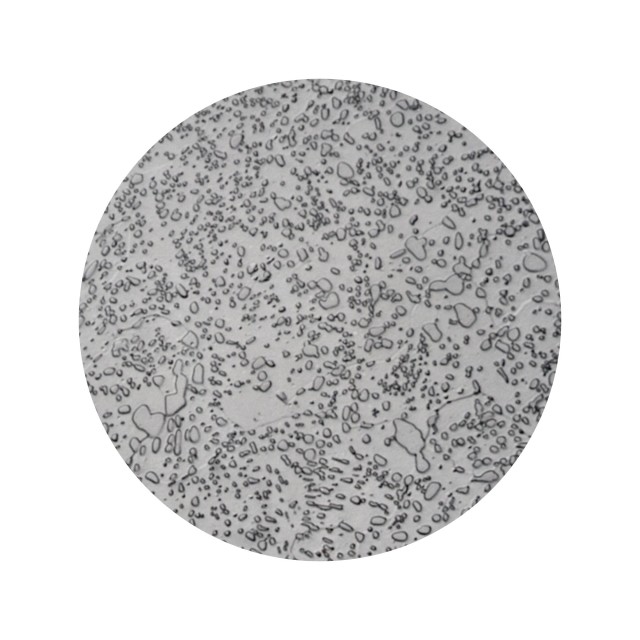

Tritone D2 tool steel is a high-carbon, high-chromium alloy celebrated for its superior wear resistance, hardness, and dimensional stability. Its elevated chromium content imparts moderate corrosion resistance when hardened, while a high carbide concentration enhances durability against metal and abrasive wear. With an optimal balance of toughness and wear resistance, D2 is commonly used for rolls, punches, blanking, forming, trimming dies, shear knives, and similar tooling applications. After heat treatment, it achieves hardness between 55 and 62 HRC and offers excellent edge retention and compression strength.

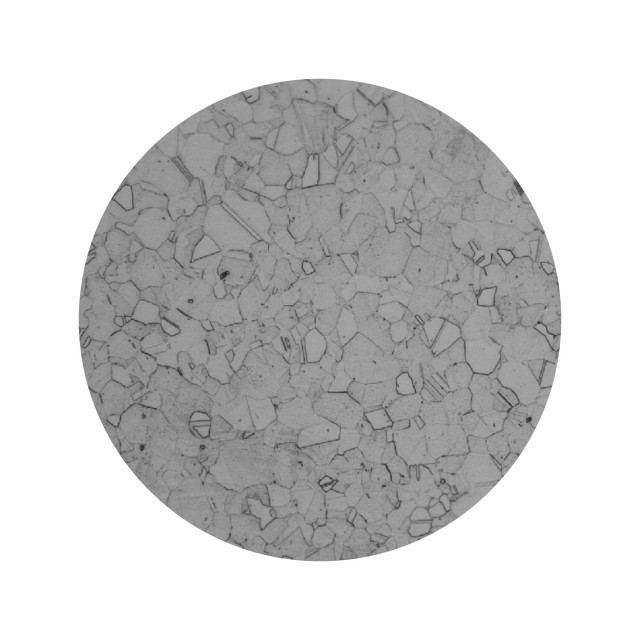

Tritone Inconel 718 is a nickel-based superalloy designed for high-strength applications across a broad temperature range from cryogenic levels up to 760 °C (1380 °F). Its composition includes nickel, chromium (around 17–21%), molybdenum, niobium, and traces of other elements, providing excellent tensile and impact strength, high creep resistance, and outstanding corrosion and oxidation resistance. Thanks to its precipitation-hardening capability, Inconel 718 can achieve tensile strengths of over 1250 MPa (around 182,000 psi) and maintain durability in extreme environments, including aerospace jet engines, gas turbines, and high-performance structural components.

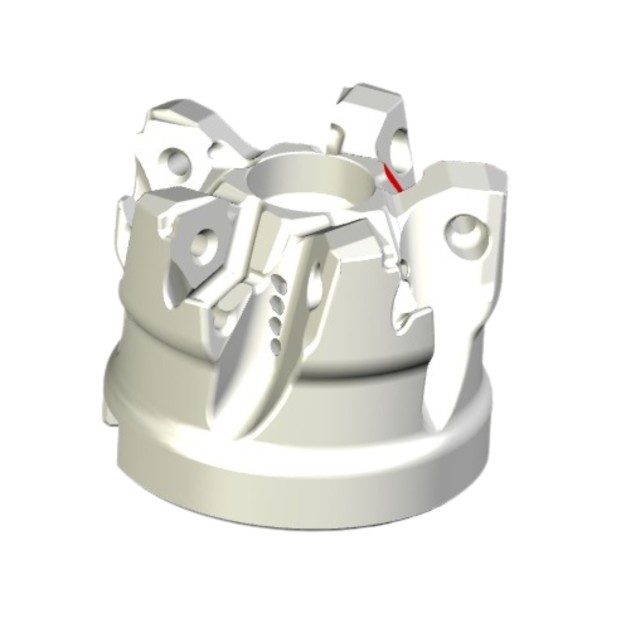

Tritone Ti6Al4V (Ti-64) is the most commonly used alpha-beta titanium alloy, often referred to as the "workhorse alloy" of the titanium industry. It is widely employed in aerospace airframes, engine components, and critical non-aerospace sectors such as marine, offshore, and power generation. The low-oxygen variant, Ti6Al4V ELI (ASTM grade 23), is extensively used in biomedical applications due to superior biocompatibility. Ti6Al4V features a high specific strength, excellent corrosion resistance, and exceptional toughness with low contaminant levels.

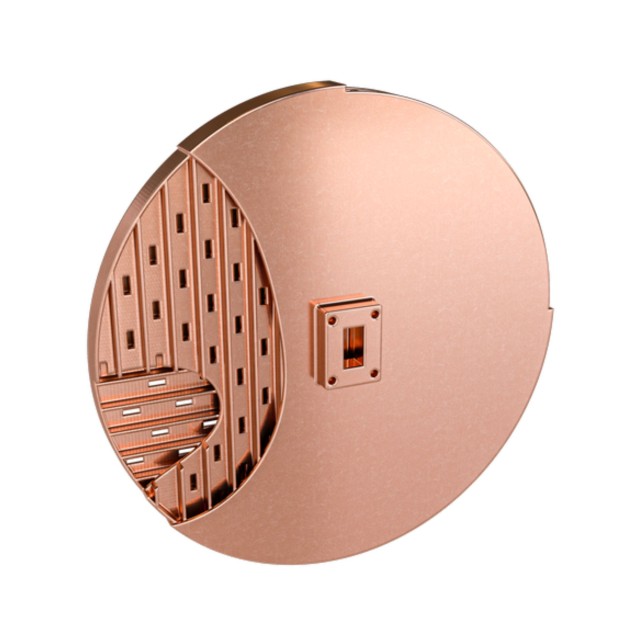

Tritone Copper is a soft, malleable, and ductile metal renowned for its exceptional thermal and electrical conductivity. It combines superior corrosion resistance and machinability with good mechanical strength and low contaminant levels. This versatility makes it ideal for applications such as heat sinks, coils, connectors, wiring, electronics, and decorative uses. Its thermal conductivity can reach approximately 394 W/(m·K), with electrical conductivity near 101% IACS, making Tritone Copper a preferred choice in electronics, power generation, and marine industries.

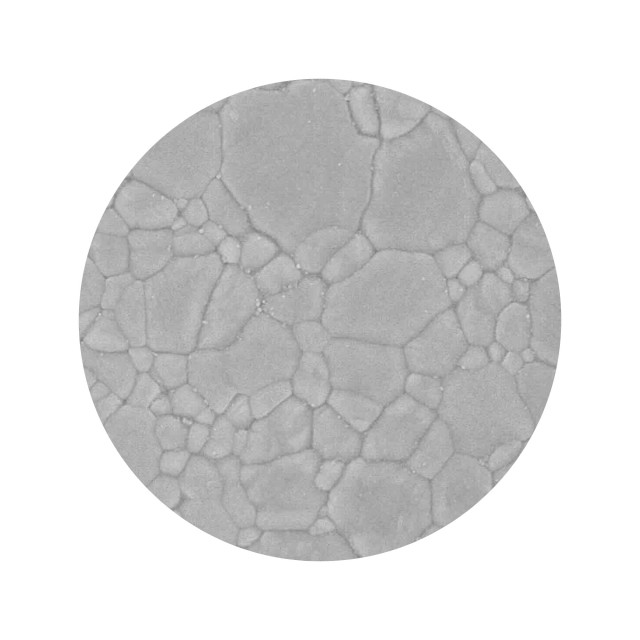

Tritone 3Y Zirconia is a 3% yttria-stabilized tetragonal zirconia polycrystal (3Y-TZP), a high-performance ceramic material renowned for its exceptional mechanical properties and versatility. Compared to standard ceramics, it offers superior wear resistance, fracture toughness (4-6 MPa·m½), and flexural strength (900-1200 MPa), making it suitable for high-stress applications. Its enhanced flexibility surpasses other technical ceramics, while its white appearance is ideal for dental frameworks like crowns and bridges, as well as decorative items such as watches and jewelry. Tritone Zirconia benefits from MoldJet technology, offering high fracture toughness and flexural strength alongside extensive printing versatility.

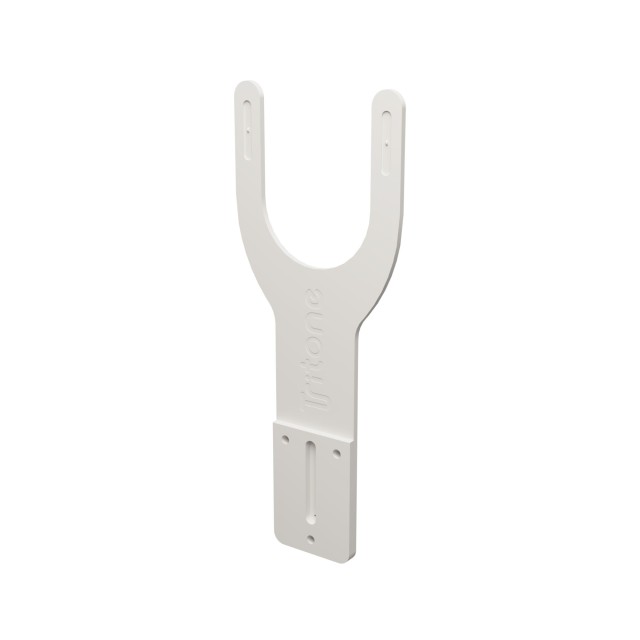

Tritone Aluminum Oxide (Alumina, Al2O3) is a highly versatile engineered ceramic known for its exceptional thermal stability, chemical resistance, electrical insulation, and mechanical strength. It is extremely hard and wear resistant, with high compressive strength even under extreme temperatures and corrosive conditions. Alumina exhibits excellent electrical insulation and gas-tight properties. Common uses include spark plugs, tap washers, abrasion-resistant tiles, and cutting tools. MoldJet technology enhances its compressive strength and production versatility.

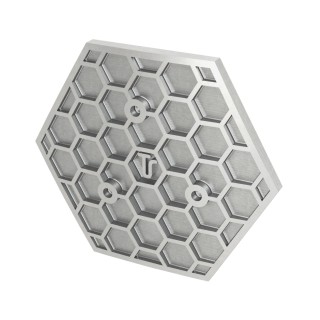

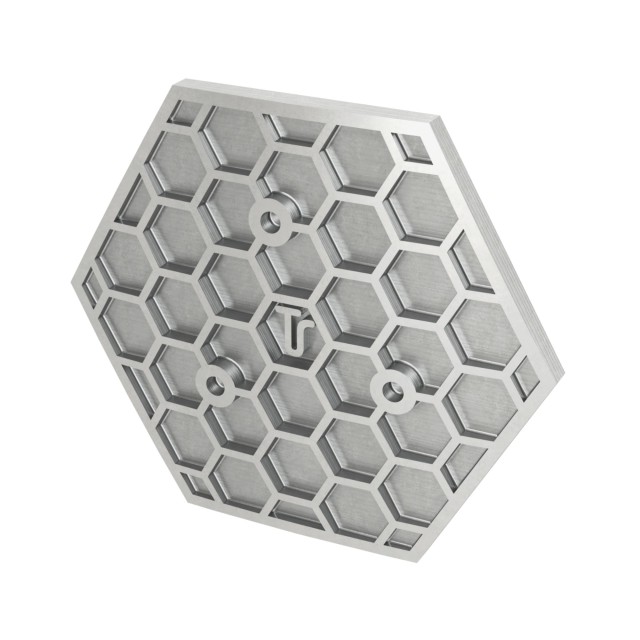

Tritone Silicon Carbide (SiC) is a high-performance ceramic renowned for its exceptional heat resistance, maintaining high mechanical strength at temperatures up to 1400 °C. SiC exhibits extreme hardness (up to 25-28 GPa), excellent fatigue resistance, high thermal conductivity (~150-200 W/m·K), low coefficient of thermal expansion (~4-5 x 10^-6/K), and outstanding corrosion resistance. These properties make it ideal for industrial applications such as armor, abrasives, optics, semiconductors, and jewelry manufacturing. SiC’s unique combination of hardness and thermal properties also supports use in sliding bearings and sealing components.
