Fiber™

Compatible materials

Filament

Desktop Metal® PA6 CF (Fiber™)

Filament

Desktop Metal® PA6 GF (Fiber™)

Filament

Desktop Metal® PEEK CF (Fiber™)

Filament

Desktop Metal® PEKK CF (Fiber™)

Base Filament & Tapes

Compared to conventional thermoplastics, short-fiber-reinforced filaments, here with a fiber volume content of up to 30%, offer better mechanical/thermal properties, with higher dimensional stability and excellent surface quality.

Continuous fiber tape (μAFP™)

The μAFP™ printhead lays fully dense tape, with up to 12,000 continuous fibers arranged in parallel and a fiber volume fraction of up to 60%.

The roller, with closed-loop thermal control, tempers and embeds the 3 mm wide tapes. The porosity is less than 1 % porosity.

Would you like to know if this solution meets your requirements?

Call or email us and we will be happy to help you.

Ahmet Destan Head of the Metal Business Unit

Parts examples

Brake cooling

This component on the periphery of a BMW racing car provides additional cooling by directing the air flow to the brake system, thus ensuring rapid cooling.

Material PEEK + CF
Size (mm) 130 x 63 x 97
Printing cost (€) 54,92

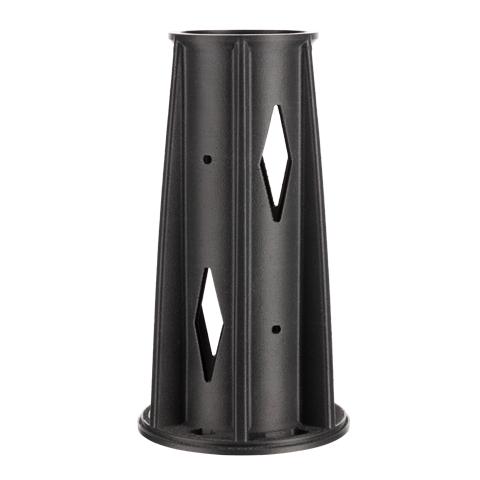

Rocket tail cone

This part sits at the end of a rocket and redirects air for optimal aerodynamics.

Material PEEK + CF
Size (mm) 155 x 155 x 157
Printing cost (€) 297,08

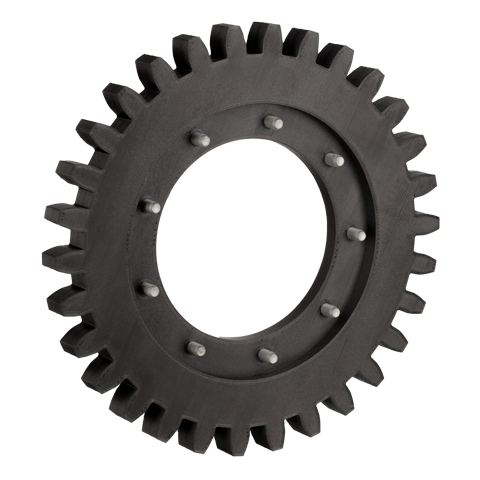

Balance shaft gears

This part is a balance shaft gear used in an automotive turbocharger to reduce vibration.

Material PEKK + CF
Size (mm) 117 x 117 x 15
Printing cost (€) 53,37

Ski binding

The heel rail of the ski binding is attached to the base plate of the ski and allows the adjustment of the heel binding.

Material PA6 + CF
Size (mm) 143 x 57 x 10
Printing cost (€) 6,24

Mirror mount

This part is used to attach a rearview mirror to the roll cage of a BMW race car.

Material PA6 + CF
Size (mm) 75 x 97 x 37
Printing cost (€) 6,47

Tools for press brakes

These press brake tools are used for bending aluminum sheets.

Material PA6 + CF
Size (mm) 95 x 127 x 80 und 91 x 64 x 51
Printing cost (€) 162,6 und 46,73

Curling whip

This part is used in wheelchair curling and allows athletes to push curling stones from a seated position.

Material PA6 + FG
Size (mm) 129 x 46 x 33
Printing cost (€) 11,24

Surfboard fin

A hydrofoil that mounts to the underside of a surfboard. The fin allows foot control and improves stability.

Material PA6 + FG
Size (mm) 143 x 120 x 6,8
Printing cost (€) 11,05

GRIT intermediate piece

Components for individual and all-terrain wheelchairs.

Material PA6 + FG
Size (mm) 86 x 89 x 47
Printing cost (€) 12,67

Let us print your idea for you!

Upload your design and select your requirements.
We will check your submission as soon as possible. Then we will print, process and ship your parts to you.
