3D printers
High quality 3D printers
Benchmark and new standard for professional 3D printers

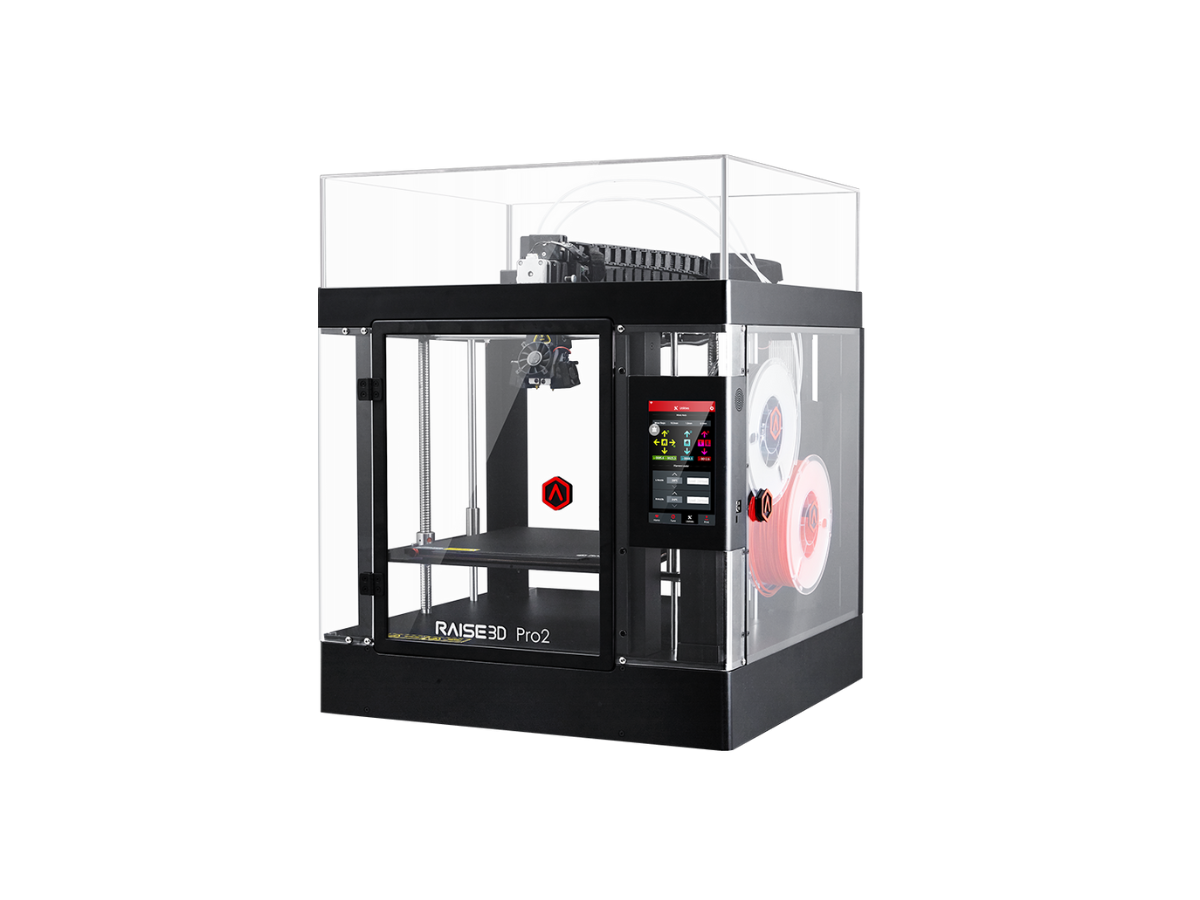

The Raise3D Pro2 is an industrial-grade 3D printer for small-batch production.
Arno Eiselt
Account Manager
Raise3D's award-winning Pro2 is considered the benchmark and new standard for professional 3D printing applications with 24/7 reliability. The dual-extruder 3D printer ensures high print quality for manufacturing and rapid prototyping projects of varying sizes.
The Raise3D Pro2 is compatible with a wide range of 3D printing materials and features a metal build plate for even heat distribution. The metal frame provides optimal stability and precise positioning. The Raise3D Pro2 is equipped with workplace safety protections, a 7-inch touchscreen for efficient monitoring of the 3D printing process, and a HEPA air filter. Like all Raise3D 3D printers, the Pro2 can be connected to the following applications:
> ideaMaker, a 3D slicer software
> ideaMaker Library, a platform for sharing 3D printer files with members of the Raise3D community
> RaiseCloud, a cloud-based 3D print management platform.
The Pro2, like all Raise3D products, is certified to both ISO 9001 and ISO 14001.
Build volume: 305 x 305 x 300mm
Advantages
Electronically controlled dual extruder with the retractable hot end
Thanks to the dual extruder, components with different 3D printing materials and colors can be produced in a single print job. In addition, water-soluble support materials for support structures can also be printed in the second extruder.
High precision
The Raise3D Pro2 features a unique motion system for superior part quality and precision, interchangeable 0.2-mm nozzles for more precise X/Y detail, a positioning resolution of 0.78 µm on the X/Y axis, and a unique layer resolution of 0.01 mm.
Motion controller of the latest generation
The use of the ARM Cortex M7 motion controller with 400 MHz and 32-bit RISC FPU as well as a stand-alone motor controller results in precise control with maximum reliability.
Advanced build plate system
The build plate is a heated, flat metal plate on which all projects are printed. An evenly heated surface on the build plate is critical to producing high-quality 3D-printed parts. It also ensures that printed materials are not damaged by uneven heat distribution.
HEPA air filtration
The Raise3D Pro2 features a HEPA air filter that cleans the air of all particles (including nanoparticles) released during the 3D printing process. The HEPA air filter works effectively in classrooms, offices, and large and small workshops. The Pro2's HEPA air filtration operates silently and is designed to work unobtrusively in the background in any environment.
7-inch touchscreen
The Raise3D Pro2's 7-inch touchscreen allows users to interact directly with the printer. It provides visual support and model selection to simplify control and monitoring of the printing process.
Resume printing in the event of a power failure.
The Raise3D Pro2 has a filament run-out sensor that warns when the filament is almost empty and saves the print. It also has a second-generation power failure feature that allows printing to resume from where it was previously saved in the event of a power failure.
Remote user interface
Work efficiently with ideaMaker by connecting wirelessly to your Raise3D Pro2 printer.
Other features:
The unit also features a built-in camera, high-quality optical end stops, a software-controlled active cooling fan, advanced hot ends and an enhanced calibration function.
Applications
Replacement of metal parts
Sometimes parts with sufficient strength can be manufactured to replace equivalent parts made of metal.
Functional parts
Fiber-reinforced 3D printing materials enable the production of functional, dynamic parts that can withstand the demands of continuous use.
Tools for manufacturing
Raise3D enables users to quickly produce specific, customized solutions for their manufacturing. It eliminates the need for molds, castings, or subcontractors and provides benefits that would be impossible to achieve with traditional manufacturing methods.
Parts and tools for the end user
Parts for immediate use can be produced quickly and meet very specific requirements for all conceivable applications.
Data Sheet Raise3D Pro2
Get the PDF
